Simex CHD 150B
CHAIN TRENCHERS FOR EXCAVATORS

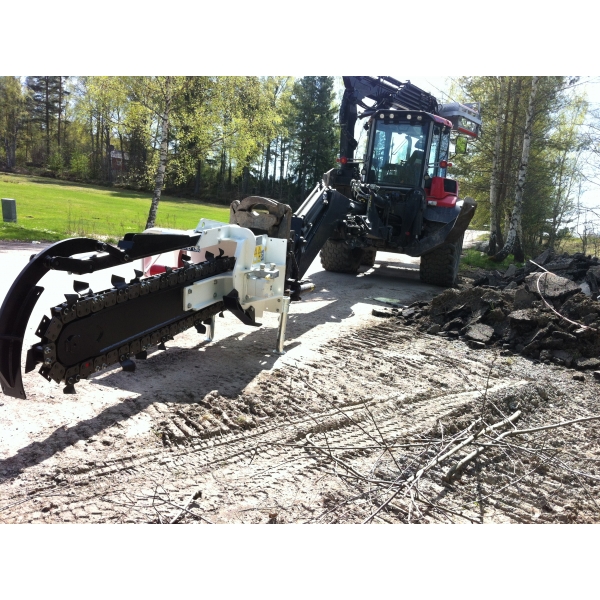

CHD Chain Trenchers for excavator booms are designed for set-section trenching on soft soils.
Price: P.O.A Phone: +353 (0)1 4511282
CHD150B
Categories
.png)
The discharge screw on the righthand side and the trench clearing device makes sure the trench is kept clean, while the slide provides maximum stability at any trenching depth.
Chain is available with hoe blades for soft soils or hoe blades with teeth for mixed soils.
FEATURES
- CLEAN TRENCH
- MAXIMUM STABILITY AT ANY DEPTH
| Max. trench depth | 1500 mm | 59 inch |
| Trench width - standard | 150 mm | 6 inch |
| Trench width - optional | 200 mm | 8 inch |
| Operating weight (1)(2) | 640 kg | 1410 lbs |
| Recommended excavator size | 8-15 ton | 17600-33000 lbs |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
2) Pressure must be inversely proportional to the flow rate available and vice versa.
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
2) Pressure must be inversely proportional to the flow rate available and vice versa.
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
