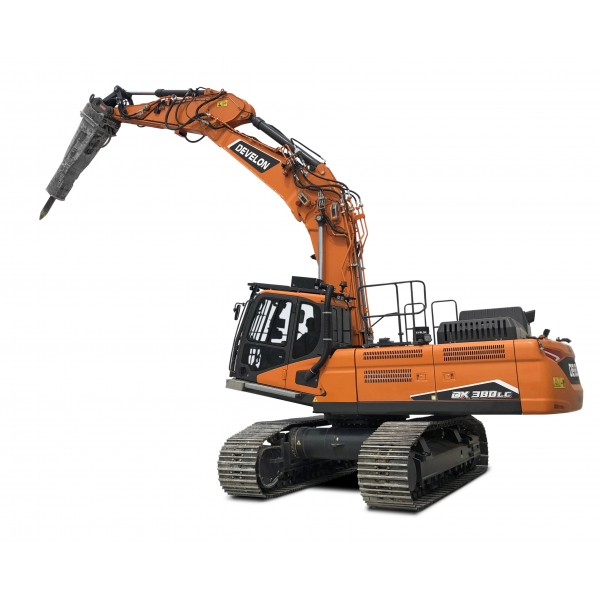

Develon DX380LC-7
Doosan’s new 40-tonne DX380LC-5 Stage IV compliant crawler excavator provides significantly improved performance.
Price: P.O.A Phone: +353 (0)1 4511282
DX380LC-7
Categories
.png)
| DX380LC-5 | Specifications |
| Operating weight | 40,200 kg |
| Engine | Scania DC09 |
| Engine power | 237 kW (317.6 HP) @ 1800 rpm (SAE J1995) |
| Main pumps max flow | 2 x 350 l/m |
| Number of cylinders | 5 |
| Travel speed | 3.4 / 5.9 km/h |
| Maximum traction | 39.7 ton |
| Buckets | 1.25 – 1.83 m3 |
| Sound level (internal / external) | 71 dB(A) - 105 dB(A) |
| Overall width | 3350 / 3000 mm (Narrow) |
| Overall height (Std Front) | 3390 mm |
| Overall length (Std Front) | 11280 mm |
| Tail swing radius | 3500 mm |
| Bucket digging force | 25.9 t |
| Arm digging force (Std Front) | 18.9 t |
| Max. digging reach (Std Front) | 11170 mm |
| Max. digging depth (Std Front) | 7460 mm |
| Max. digging height (Std Front) | 10390 mm |
