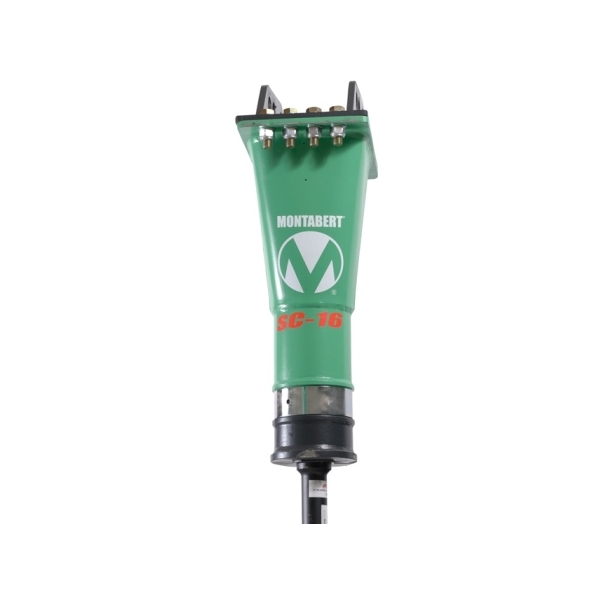

Montabert SC-16

The Montabert Silver Clip (SC) 16 rock breaker from EMS, Dublin are designed and suited to be used on mini diggers from 1.5 to 3.7 Ton.


Price: P.O.A

Phone: +353 (0)1 4511282

SC-16

More details

The Montabert Silver Clip (SC) rock breaker range is designed to be used on various sizes of carriers from micro, mini and midi excavators to backhoe loaders. EMS is main importer and dealer for new Montabert rock breakers for the Republic of Ireland.

Every Montabert hydraulic hammer provides Robustness, power and adaptability which are among the key features of all Silver Clip breakers, which will enable you to carry out multiple jobs easily with a single operator and a single machine on site.

  • Robustness

    The Silver Clip range has a single-piece body with no tie rods that could potentially stretch or break, resulting in downtime (patented). The breaker has blank fire protection as standard to help minimize impact wear. An automatic pressure regulator increases the lifespan of the breaker and to protect the excavator (patented).

  • Power

    High power and performance: the energy ratio is higher than all current standards on this range of breakers, enabling optimal efficiency regardless of the material to be broken. An energy recovery device captures and recycles the rebound energy, making it available for the next impact stroke.

  • Versatility

    The Silver Clip is easily adaptable to a wide range of excavators while ensuring optimal performance (even with a high back-pressure). Compact dimensions provide excellent ergonomics and make this breaker ideal for any work. Standard noise isolation on the complete product range ensures reduced noise on job sites.

  • Options

    A compacting plate (Clip Ram) and a Clip Bucket are directly adaptable on the hydraulic breaker without having to modify any hydraulic connection or part (patented) (from SC-8 to SC-28). Easylub greasing (SC-50). Pressurization kit for underwater work.

SC-16UNITVALUES
Carrier Weight t 1.5 - 3.7
Weight with top bracket and
tool
kg 150
Diameter of the tool mm 55
Working length of the
tool
mm 335
Input power* kW 10
Frequency blows/min 1500
Total length with tool,
without top bracket
mm 1036
Oil   flow l/min 25 - 50
Working pressure of the
breaker
bar 120
Acceptable back-pressure bar 32
Clip Bucket   yes
Clip Ram   yes



EMS are suppliers and distributors for a range of construction & plant machinery throughout Ireland. EMS are official Montabert dealers for the full range of new Montabert rock breakers, including all Silver Clip (SC) Hammer models for use on micro, mini, midi excavators and backhoe loaders.

EMS is a distributor and supplier of the full range Montabert breakers covering the Republic of Ireland including Leinster, Munster and Connacht from our premises in Naas Enterprise Park, Co Kildare, Ireland.
