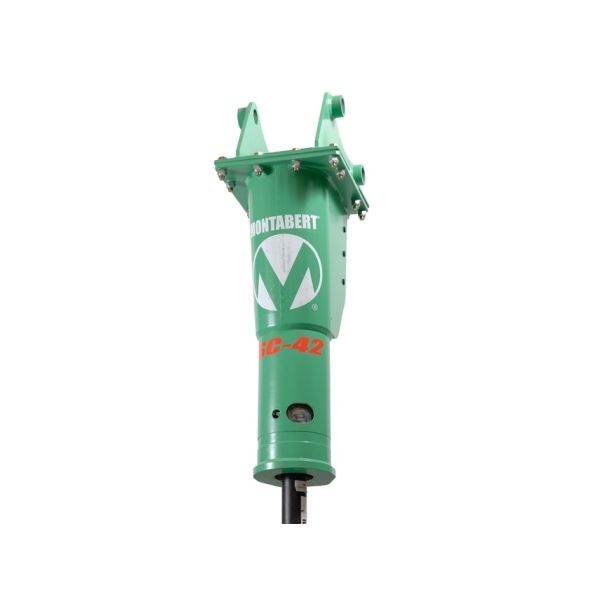

Montabert SC-42
The Montabert Silver Clip (SC) 42 rock breaker from EMS are designed and suited to be used on Midi diggers from 4.0 to 12.0 Ton and large backhoes.
Price: P.O.A Phone: +353 (0)1 4511282
SC-42
The Montabert Silver Clip (SC) 42 rock breaker from EMS are designed and suited to be used on Midi diggers from 4.0 to 12.0 Ton and large backhoes.
SC-42
The Silver Clip range has a single-piece body with no tie rods that could potentially stretch or break, resulting in downtime (patented). The breaker has blank fire protection as standard to help minimize impact wear. An automatic pressure regulator increases the lifespan of the breaker and to protect the excavator (patented).
High power and performance: the energy ratio is higher than all current standards on this range of breakers, enabling optimal efficiency regardless of the material to be broken. An energy recovery device captures and recycles the rebound energy, making it available for the next impact stroke.
The Silver Clip is easily adaptable to a wide range of excavators while ensuring optimal performance (even with a high back-pressure). Compact dimensions provide excellent ergonomics and make this breaker ideal for any work. Standard noise isolation on the complete product range ensures reduced noise on job sites.
A compacting plate (Clip Ram) and a Clip Bucket are directly adaptable on the hydraulic breaker without having to modify any hydraulic connection or part (patented) (from SC-8 to SC-28). Easylub greasing (SC-50). Pressurization kit for underwater work.
SC-42 | UNIT | VALUES |
---|---|---|
Carrier Weight | t | 4.0 - 12.0 |
Weight with top bracket and tool | kg | 445 |
Diameter of the tool | mm | 84 |
Working length of the tool | mm | 439 |
Input power* | kW | 25 |
Frequency | blows/min | 1450 |
Total length with tool, without top bracket | mm | 1499 |
Oil flow | l/min | 70 - 120 |
Working pressure of the breaker | bar | 125 |
Acceptable back-pressure | bar | 20 |
Clip Bucket | no | |
Clip Ram | no |
