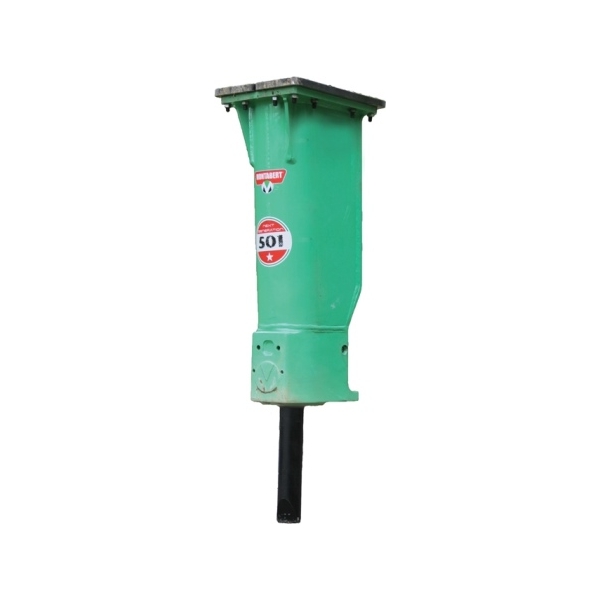

Montabert 501 NG

The all new Montabert 501 NG rock breakers available from EMS.

The 501 NG, The return of a legend. 75% more powerful & 30% weight reduction. This hammer is designed and suited to be used on midsize crawler excavators from 8 to 18 Ton.


Price: P.O.A

Phone: +353 (0)1 4511282

501 NG

More details

EMS is the main importer and dealer for new Montabert rock breakers for the Republic of Ireland and see the return of a legend in Montabert's 501 NG, now 75% more powerful & with a 30% weight reduction on its predecessor.

Productivity increases thanks to higher energy per blow and higher blow frequency. Greater productivity means faster project completion with cost per cubic meter reduced. A lighter rock-breaker means greater manoeuvrability for more precise and faster work, and the use of a more compact and economical carrier.



TECHNICAL SPECIFICATIONSSIIMP
Carrier weight T 8-18 lb 17637-39683
Breaker weight
with bracket and tool		 kg 730 lb 1610
Tool
diameter		 mm 106 in 4,17
Tool working
length		 mm 566 in 22,38
Input
power		 kW 33 kW 33
Blow
frequency		 Cps/mn 870 bpm 870
Overall length
with tool		 mm 2148 in 84,54
Oil flow L/mn 80-140 gpm 21,1-37
Working
pressure		 bars 140 psi 2030
Acceptable
back-pressure		 bars 20 psi 290
Pre-equipped to received air
pressurization kit		 Standard
Air-pressurization kit Optional
Easy Lub greasing station Optional
Overflow protection Optional
Swivels Optional



EMS are suppliers and distributors for a range of construction & plant machinery throughout Ireland. EMS are official Montabert dealers for the full range of new Montabert rock breakers, including all Heavy Line Hammer models for use on crawler excavtors.

EMS is a distributor and supplier of the full range Montabert breakers covering the Republic of Ireland including Leinster, Munster and Connacht from our premises in Naas Enterprise Park, Co Kildare, Ireland.
