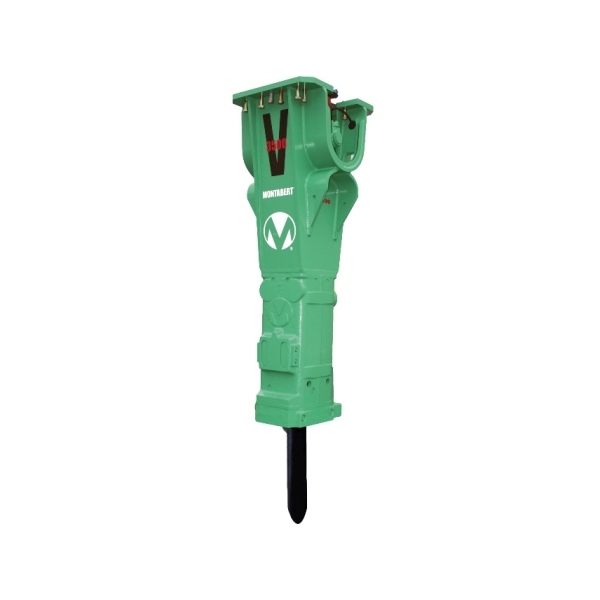

Montabert V3500

New Montabert Heavy Line V3500 rock breakers from EMS offer patented designs suited to be used on crawler excavators from 35 - 60 Ton.

Montabert hydraulic breakers guarantee optimum performance and reliability through Montabert's patented 2-speed system.

- Metro Silenced

- TPS System

- Energy recovery system

- Automatic pressure regulator

- Accumulator with diaphragm

- Blank Fire Protection

Price: P.O.A

Phone: +353 (0)1 4511282


More details

The Montabert Heavy Line rock breaker range is designed to be used on various sizes of carrier. EMS is the main importer and dealer for new Montabert rock breakers for the Republic of Ireland.

Every Montabert Heavy Line hydraulic hammer provides Robustness, Power, Reliability and Productivity.

The Key Feature of the V3500 is the patented Automatic 2-speed system; this high energy or high frequency system is specially recommended for work on homogeneous material. The V3500 is also equipped with a patented TPS mechanism to protect against the breakage of the tool.

- 2-speed system

- Metro Silenced (MS)

- TPS System (Tool Protection System)

- Long & Large chisel

- Energy recovery system

- Automatic pressure regulator

- Accumulator with diaphragm

- Blank Fire Protection

Carrier weight t 35 - 60
Weight with top bracket and
kg 3500
Diameter of the tool mm 175
Working length of the
mm 730
Input power* kW 93
Frequency blows/mn 550-850
Total length with tool,without
top bracket
mm 3090
Oil flow l/mn 250-320
Working pressure of the
bar 175
Acceptable back-pressure bar 15
Working speeds   2auto
Greasing station   Standard
Swivels   Yes


EMS are suppliers and distributors for a range of construction & plant machinery throughout Ireland. EMS are official Montabert dealers for the full range of new Montabert rock breakers, including all Heavy Line Hammer models, for use on crawler excavators.

EMS is a distributor and supplier of the full range of  Montabert breakers covering the Republic of Ireland, including Leinster, Munster and Connacht, from our premises in Naas Enterprise Park, Co Kildare, Ireland.
