Mecalac/Terex 1 tonne site dumpers operate on the narrowest job sites, providing superior versatility and performance via a host of productivity-enhancing features

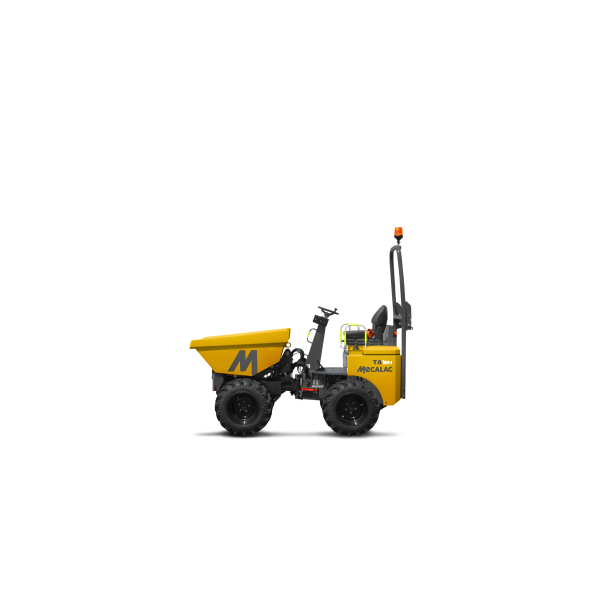

The Mecalac/Terex TA1EH comes with hydrostatic drive, Hi Tip skip as standard.
TA1
A skip payload of 1000kg, maximum machine width of 1.1m and best in class turning circle of 4.6m the TA1EH is perfect for the smallest of worksites.
Elevating skip means loads can be tipped directly into a skip or truck.
Automotive-style hydrostatic transmission is easy to operate, a direction control lever and throttle pedal are all that is required, automatic braking is activated when the throttle pedal is released, increasing safety on site.
|
Model |
TA1EH |
| PERFORMANCE: | |
| Payload (Kg) | 1000 |
| Unladen Weight (Kg) | 1310 |
| Tipping Type | Forward Tip – High Discharge |
| Engine | Kubota D905 |
| Gross Power – kW (hp) | 15.5 (20.8) |
| Maximum Torque (Nm) | 56Nm |
| Aspiration | Naturally Aspirated |
| TRANSMISSION/DRIVE: | |
| Transmission Type | Hydrostatic Pump (Poclain Twinlock) to 4 Hydraulic Wheel Motors |
| Drive | Hydrostatic 1/1 |
| Tyre Size |
255 / 75 x 15.2 x 8 ply (option 7.0 x 12 narrow tyre*) |
| DIMENSIONS: | |
| Total Length (mm) | 2980 |
| Total Width (Max) (mm) | 998* / 1120 |
| Wheelbase (mm) | 1440 |
| Ground Clearance (mm) | 241 |
| Height to Front Lip of Skip (untipped) (mm) | 1167 |
| Height to Front Lip of Skip (tipped) (mm) | 1620 (raised) |
