Mecalac/Terex 2 tonne capacity site dumpers are amongst the most versatile on the market today, building on over sixty year's of design and manufacturing expertise they are easy to operate and simple to maintain. With a range of discharge configurations.
Models Variants: TA2SH/ TA2SH/ TA2SEH

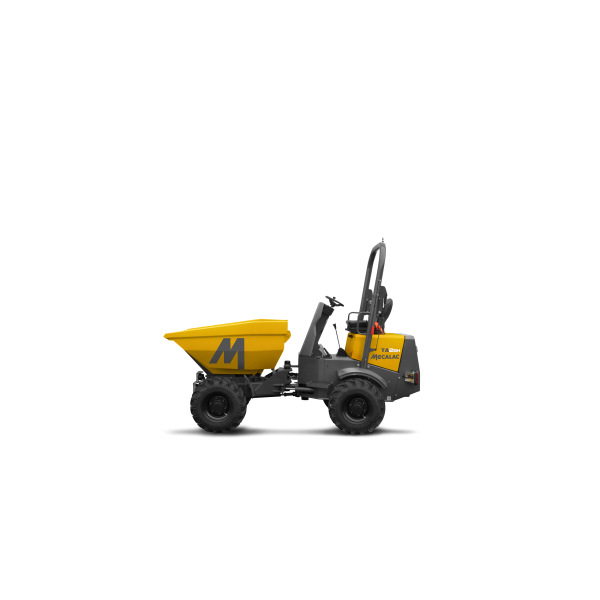

TA2
With a skip payload of 2000kg and options such as a straight tip skip (TA2H), 180-degree power swivel tip skip (TA2SH) or an elevating swivel tip skip (TA2SEH) the TA2H range can fit the requirements of many small job sites.
The Hydrostatic transmission delivers smooth and uninterrupted power for the operator. Simple user-friendly controls help all operators adapt quickly
Model Vatiant:
| Model | TA2H | TA2SH | TA2SEH |
| PERFORMANCE: | |||
| Payload (Kg) | 2000 | 2000 | 2000 |
| Unladen Weight (Kg) | 1964 | 2082 | 2166 |
| Tipping Type | Forward Tip | Swivel | Swivel Tip – High Discharge |
| Engine | Kubota D1703M | Kubota D1703M | Kubota D1703M |
| Gross Power – kW (hp) | 24.5 (32.6) | 24.5 (32.6) | 24.5 (32.6) |
| Maximum Torque (Nm) | 105Nm | 105Nm | 105Nm |
| Aspiration | Naturally Aspirated | Naturally Aspirated | Naturally Aspirated |
| TRANSMISSION/DRIVE: | |||
| Transmission Type | Hydrostatic Motors | Hydrostatic Motors | Hydrostatic Motors |
| Drive | 2 / 2 (High & Low Range) | 2 / 2 (High & Low Range) | 2 / 2 (High & Low Range) |
| Tyre Size | 10.0 / 75 x 15.3 (10 ply) | 10.0 / 75 x 15.3 (10 ply) | 10.0 / 75 x 15.3 (10 ply) |
| DIMENSIONS: | |||
| Total Length (mm) | 3570 | 3550 | 3550 |
| Total Width (Max) (mm) | 1492 | 1492 | 1492 |
| Wheelbase (mm) | 1900 | 1900 | 1900 |
| Ground Clearance (mm) | 184 | 184 | 184 |
| Height to Front Lip of Skip (untipped) (mm) | 1323 | 1360 | 1522 |
| Height to Front Lip of Skip (tipped) (mm) | 916 | 983 | 1142 (lowered) / 1640 (raised) |
