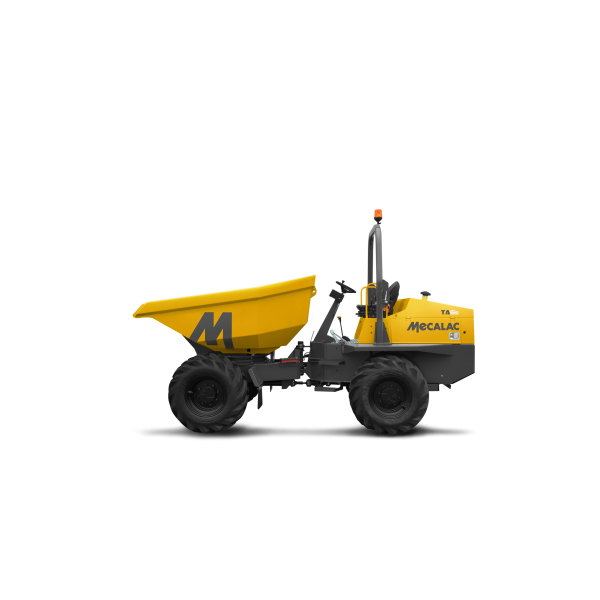

Mecalac/Terex TA6

Mecalac/Terex 6 tonne site dumpers lead the market with greater skip carrying capacities and innovative machine techology.  Together they increase efficiency and reduce cost of operation, whilst heavy duty design fabrications ensure strong resale values and lower cost of ownership.

Models Variants: TA6/TA6S


Price: P.O.A

Phone: +353 (0)1 4511282

TA6

More details


Designed for the medium to large job site the 55kw (74hp) Stage V (Tier 4 Final) engine powered TA6 offers versatility for your material movement.

With a skip payload of 6000kg, choose between straight tip skip for bulk material movement or the 180-degree power swivel skip which allows precision placement of loads to either side of the machine.

A synchro shuttle transmission provides 4 forward and 4 reverse gears with a maximum travel speed of 25kph (15mph), permanent 4 wheel drive and central articulation ensure traction is maintained in even the toughest conditions.

All 6-tonne machines now feature Shield safety technology as standard with an option to upgrade to Shield plus for additional safety technology.


Model Variants:

Model TA6 TA6S
PERFORMANCE:
Payload (Kg)  6000 6000
Unladen Weight (Kg)  4350 4410
Tipping Type  Forward Tip Swivel Tip
Engine JCB EcoMax JCB EcoMax
Gross Power – kW (hp)  55 (74) 55 (74)
Maximum Torque (Nm)  400Nm  400Nm
Aspiration  Turbochraged Turbochraged
TRANSMISSION/DRIVE:
Transmission Type Powershuttle Powershuttle
Drive  4 / 4 Forward & Reverse  4 / 4 Forward & Reverse
Tyre Size  405–70–20 14PR 405–70–20 14PR
DIMENSIONS:
Total Length (mm) 4405 4539
Total Width (Max) (mm)  2300 2207
Wheelbase (mm)  2450 2450
Ground Clearance (mm)  385 385
Height to Front Lip of Skip (untipped) (mm)  1672 1732
Height to Front Lip of Skip (tipped) (mm)  504 1258
