Mecalac/Terex 9 tonne site dumpers lead the market with greater skip carrying capacities and innovative machine techology. Together they increase efficiency and reduce cost of operation, whilst heavy duty design fabrications ensure strong resale values and lower cost of ownership.
Model Variants: TA9

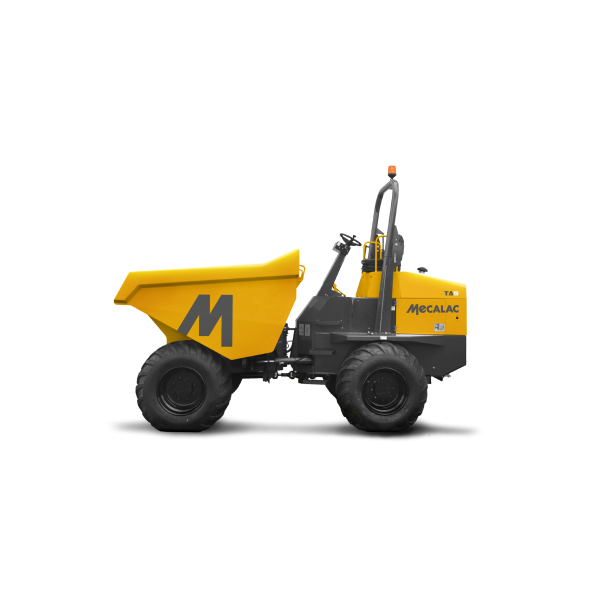

TA9
Designed for the large job site the TA9 is powered by a 55kw (74hp) Stage V (Tier 4 Final) engine and offers versatility for your material movement.
With a skip payload of 9000kg, choose between straight tip skip for bulk material movement or the 180-degree power swivel skip which allows precision placement of loads to either side of the machine.
A synchro shuttle transmission provides 4 forward and 4 reverse gears with a maximum travel speed of 25kph (15mph), permanent 4 wheel drive and central articulation ensure traction is maintained in even the toughest conditions.
All 9-tonne machines now feature Shield safety technology as standard with an option to upgrade to Shield plus for additional safety technology.
Model Variants:
| Model | TA9 |
| PERFORMANCE: | |
| Payload (Kg) | 9000 |
| Unladen Weight (Kg) | 4590 |
| Tipping Type | Forward Tip |
| Engine | JCB EcoMax |
| Gross Power – kW (hp) | 55 (74) |
| Maximum Torque (Nm) | 400Nm |
| Aspiration | Turbochraged |
| TRANSMISSION/DRIVE: | |
| Transmission Type | Powershuttle (Powershift option) |
| Drive | 4 / 4 Forward & Reverse |
| Tyre Size | 500–60–22.5 16PR |
| DIMENSIONS: | |
| Total Length (mm) | 4484 |
| Total Width (Max) (mm) | 2500 |
| Wheelbase (mm) | 2450 |
| Ground Clearance (mm) | 410 |
| Height to Front Lip of Skip (untipped) (mm) | 1722 |
| Height to Front Lip of Skip (tipped) (mm) | 430 |
