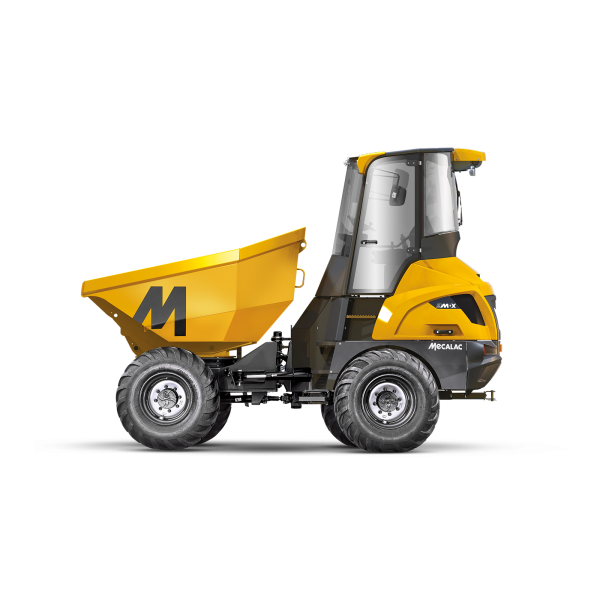

Mecalac / Terex 9MDX

Mecalac/Terex 6 tonne cab dumpers lead the market with greater skip carrying capacities and innovative machine techology. Together they increase efficiency and reduce cost of operation, whilst heavy duty design fabrications ensure strong resale values and lower cost of ownership.

Price: P.O.A

Phone: +353 (0)1 4511282


More details

Designed with safety in mind the 9MDX features a large spacious cabin that provides excellent natural visibility, combined with a standard forward facing camera the machine full complies with ISO5006.

Large self cleaning foot steps and full length handrails ensure the operators access and egress is as safe as possible. With a skip payload of 9000kg, choose between straight tip skip for bulk material movement or the 180 degree power swivel skip which allows precision placement of loads to either side of the machine. A synchro shuttle transmission provides 4 forward and 4 reverse gears with a maximum travel speed of 25kph (15mph), permanent 4 wheel drive and central articulation ensure traction is maintained in even the toughest conditions.

All 9 tonne machines now feature Shield safety technology as standard with an option to upgrade to Shield plus for additional safety technology.

Total operating weight (kg) 5835
Overall width (mm) 2500 / 2380
Overall Length (mm) 4484 / 4666
Travel speed (km/h) 24,8
Engine power (kW/hp) 55 / 74
Payload (Kg) 9000
