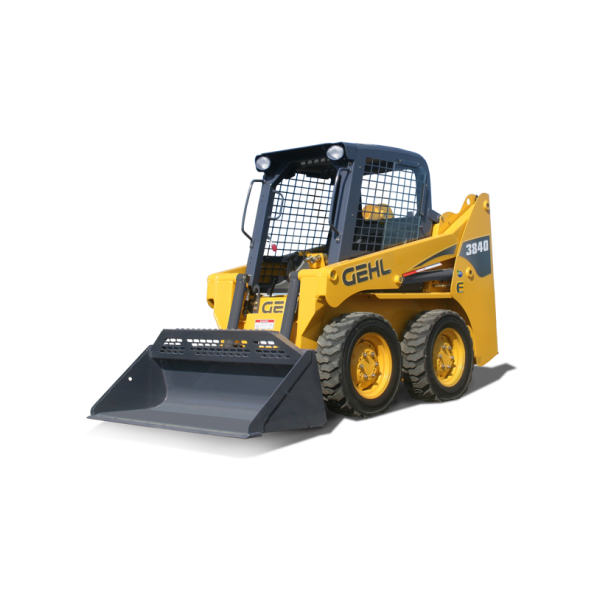

Gehl 3840E

Performance



• Longer wheelbase and a low center-of-gravity offer a smooth, stable ride.



• Hydraloc™ automatic interlock system locks lift, tilt and drive systems when the operator leaves the seat, increasing operator safety. System also engages when the restraint bar is raised or the ignition switch is turned off.



• Lift arm hydraulic tubes are concealed and protected from the work environment.



• Rated operating load can be readily increased with the addition of a counterweight.



Overall Width	1229 mm
Overall Height to Top of ROPS	1786 mm

Operator's Cabin

A large operator’s compartment with clear front, side and rear sight lines provides operators full, expansive views for increased safety.

• ROPS/FOPS Level II is standard for extra operator protection.

• Roof grid section and window provide excellent bucket visibility at full height.

• Adjustable operator restraint bar offers secondary protection and serves as a padded armrest.

• Lockout system shuts down lift/tilt functions when optional front door is opened.

• T-bar “hands-only,” hand-foot controls match any operator’s preference.

Controls

Engine

Equipped with a powerful 26 kW Yanmar diesel engine, the 3840E Skid Loader can tackle any challenge.

• Liquid-cooled for superior performance in all weather conditions.

• Excellent cold weather starting with glow plug assist system.

Hydraulics

The 3840E provides 55 L/min of hydraulic flow powering a variety of attachments to get work done faster.

• Direct-drive hydrostatic pump with self-neutralizing feature provides 100% efficient drive from engine to pump, requiring no maintenance

• Hydraloc™ Automatic Interlock System increases operator safety by locking lift, tilt and drive systems when the operator leaves the seat, raises the restraint bar or turns off the ignition switch.

Lift Arm



Serviceability

The 3840E has an ingenious design, including low-maintenance components and easy maintenance access.

• Entire ROPS/FOPS structure pivots back, with gas-spring assist, for full, easy access to the internal hydraulic components.

• Swing-open rear door and flip-up engine cover fully expose maintenance access points to engine, battery, filters and filler caps.

• Maintenance-free axles are lubricated and sealed for long life.

• Removable access plates for clean out.
