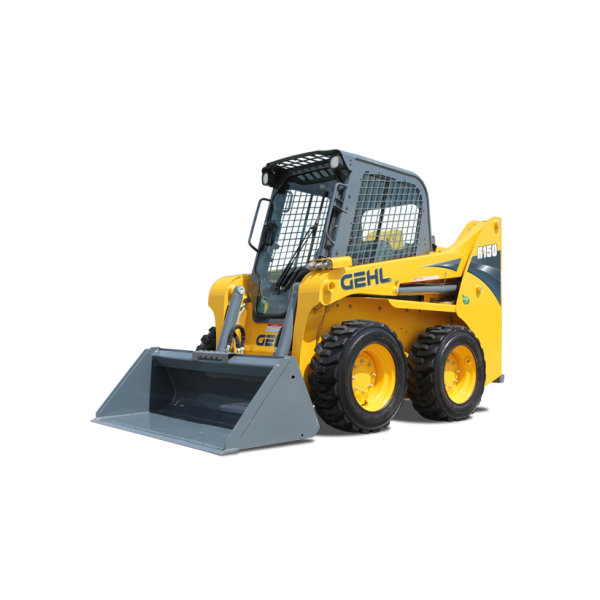

Gehl R150

The demand for a Gehl 680 kg capacity skid loader has been fulfilled with the introduction of the R150.


Price: P.O.A

Phone: +353 (0)1 4511282

R150

More details

Performance

Net Power (kW) 44.5 hp (33)
Maximum Torque (Nm) 146
Rated Operating Capacity (kg) 680


Operator's Cabin

The R150 features a new, state-of-the-art, fully-adjustable operator's cab.

  • Sound reduction material within the cab suppresses outside noise for a quieter operator environment.

  • A front-lifting restraint bar with integrated armrests provides personalized comfort and increased safety.

  • Standard high-back adjustable seat and optional air-ride suspension seat or mechanical suspension seat provide enhanced, all-day comfort.

  • Cab forward design enhances view to the bucket edge. Lowered rear towers improve visibility to the rear of the machine.

  • Hydraloc™ System - Brakes and hydraulics are applied automatically whenever the operator raises the restraint bar, leaves the operator's seat or switches off the ignition.

  • Creature comforts include automatic dome light, cup holder, 12-volt outlet, storage tray and multiple adjustable air vents.

Controls

Digital Color Display Skid Loader

  • Digital color display shows real time fuel consumption, engine RPM's, machine hours, engine diagnostic codes, warning indicators and much more.

  • Three control options include T-Bar, Joystick, and Hand/Foot.

  • All instrumentation is conveniently located in the upper-right and left instrument panels for easy access.

  • Hydraloc™ system applies brakes whenever the operator raises the restraint bar, leaves the operator’s seat or switches off the ignition.


Engine

The R150 is equipped with an all-new Yanmar Tier IV naturally-aspirated diesel engine.

  • Automatic glow plug heating system provides superior cold-weather starting.

  • After treatment meets all Tier IV requirements through proven technology.

Make Yanmar
Model

4TNV88-BKMSR2

Net Power (kW) @ rpm 46.3 hp (34.5) @ 2800
Maximum Torque (Nm) @ rpm 146 Nm @ 1820
Displacement (L) 2.19

Hydraulics

The R135 has amped-up hydraulic systems which incorporate intuitive design for precise controllability.

  • Standard proportional auxiliary hydraulic control gives the operator the ability to adjust attachment speeds with infinitely adjustable flow control.

  • Attachments changes are clean and easy with flat-faced quick couplers that allow for changes by hand instead of tools.

  • Hardened chrome cylinder rods resist pitting, rusting and scratching, extending the life of the cylinders.

Auxiliary Hydraulics - Standard (L/min) 64.4
High-Flow Auxiliary Hydraulics - Option (L/min) N/A
Reservoir Capacity (L) 41.6

Lift Arm

The R150 features an all-new low-profile lift arm.

  • 42% more visibility with new low-profile lift arm.

  • Selectable hydraulic self-leveling option keeps the bucket level throughout the lift cycle.

Serviceability

Excellent service access and quality components pair up to provide durable machines that are easy to maintain.

  • Large engine cover is hinged and positioned by gas-springs to assist lifting and holding in place, and allows for easy return to closed/operating position.

  • Swing-out rear door easily opens on hinges, allowing full access to filters and fluid reservoirs, for servicing and maintenance.

  • All-new swing-out cooler provides improved access to the engine bay area.

  • Entire ROPS/FOPS assembly tilts rearward with a gas-spring assist for easy internal access to the pumps, hydraulic valve bank and drive motors.

  • All-new cab safety restraint & pull cord safely holds ROPS/FOPS in raised position.

  • Removable plate for easy cleanout of foot area inside ROPS/FOPS
