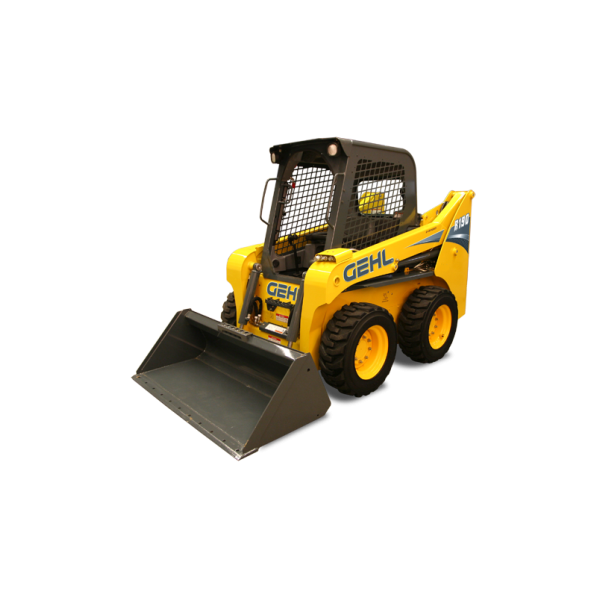

Gehl R190

With over 40 years of skid loader manufacturing experience, Gehl has taken performance to the next level with the R190 Skid Loader.


Price: P.O.A

Phone: +353 (0)1 4511282

R190

More details

Performance

Gehl Skid Steer R Series Skid Steer Loader
Net Power 51 kW
Maximum Torque 235 Nm
Rated Operating Capacity 862 kg

Operator's Cabin

The new R190 has a spacious operator station with plenty of adjustability and enhanced comfort features that users have come to expect from Gehl.

  • Large Level II ROPS/FOPS is standard equipment.

  • New side-folding restraint bar and adjustable armrests enhance operator safety and comfort.

  • Adjustable control pods (joystick and hand/foot configurations) and an optional air-ride seat deliver outstanding comfort.

  • Cab forward design enhances view to the bucket edge. Lowered rear towers improve visibility to the rear of the machine.

  • Extra-large side screens combined with Gehl PowerView® low-profile lift arm design provide a wide field-of-view to the side work areas.

  • Optional pressurized sealed cab enclosure with sound reduction material and rear-mounted air filter provide a cleaner, quieter, climate controlled operating environment.
Gehl R190 Cabin

Controls



Controls on the R190 incorporate intuitive design, state-of-the-art technology and plenty of options to suit the preference of any operator.

  • Four control options include T-Bar, Joystick, Dual-Hand, and Hand/Foot.

  • Auxiliary controls are located on the control grip in all control configurations for easy access.

  • Customizable integrated digital display provides coolant, fuel, battery, environmental and engine regeneration, and more information in real time.

  • Adjustable joystick control pods provide ease of operator control with minimal effort, reducing fatigue.

  • New upper-left and upper-right instrument panels provide easy readout and switch access.

  • Hydraloc™ system applies brakes whenever the operator raises the restraint bar, leaves the operator’s seat or switches off the ignition.

Engine

The R190 is equipped with a top-of-the-line Yanmar engine that provides the muscle needed to tackle demanding jobs with ease.

  • The DPF (Diesel Particulate Filter) system provides clean emissions without the need for additional fuel after-treatment additives.

  • The DPF requires regeneration to maintain optimal running conditions. This occurs passively as the machine is operated, but also requires occasional manual regeneration by the operator.

  • Regeneration is intuitively managed through the digital display and a clearly labeled rocker switch.

Make Yanmar
Model 4TNV98 Stage 3A
Net Power (kW) @ rpm 68.4 hp (51) @ 2500
Maximum Torque (Nm) @ rpm 173 ft.-lbs. (244.2) @ 1650
Displacement (L) 202.6 cu.in. (3.3)
Gehl Skid Steer R190 Engine Access

Hydraulics

Gehl R190 Hydraulics

The R190 has amped-up hydraulic systems which incorporate intuitive design for precise controllability.

  • Impressive breakout forces deliver optimal digging and lifting performance.

  • Improved cycle times increase productivity on the jobsite.

  • Excellent ease of operation and proportionate flow adjustability are achieved with the auxiliary flow control rocker switch located on the control grip.

  • HydraGlide™ option helps keep material in the bucket and provides a smoother ride by allowing the bucket to float when travelling over rough terrain.

  • Hardened chrome cylinder rods resist pitting, rusting and scratching, extending the life of the cylinders.

Auxiliary Hydraulics - Standard 70 L/min
High-Flow Auxiliary Hydraulics - Option 119 L/min
Reservoir Capacity 30.3 L

Lift Arm

Gehl R190 Between the Tire Over the Tire

The R190 is built with a robust, radial lift arm that incorporates performance and durability.

  • Radial lift path offers enhanced performance in excavating, grading and digging below grade applications.

  • Selectable hydraulic self-leveling option keeps the bucket level throughout the lift cycle.

  • Between the tire design keeps the machine length short and compact.

  • Gehl PowerView® low-profile boom design offers optimal side-to-side visibility.

Serviceability

Excellent service access and quality components pair up to provide durable machines that are easy to maintain.

  • Oversized engine hood and rear door opens completely, exposing engine components and daily maintenance points.

  • ROPS/FOPS tilts up with the aid of gas struts for access to hydraulic components.

  • Drive chains and axle bearings are sealed systems that require no maintenance.

  • All high-rotation pins have grease points for ease of maintenance.

  • Features such as the remote oil drain and filter provide simple and easy maintenance access.

Gehl R Series Service Access
