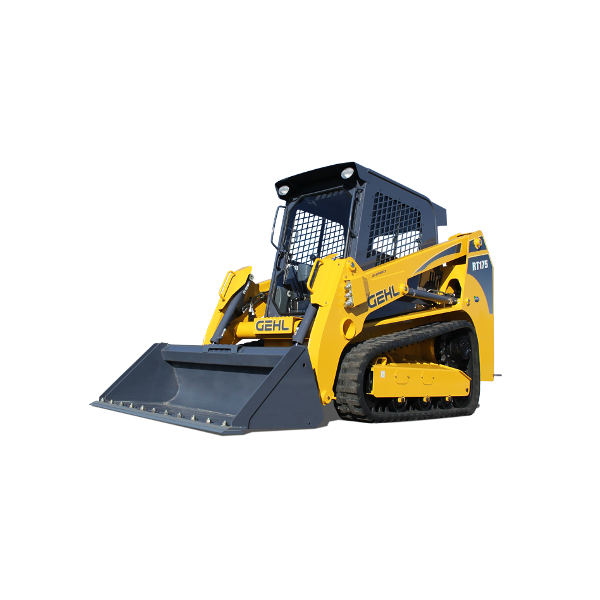

Gehl RT175

Performance

The Gehl RT175 compact track loader is taking performance to the next level.

• Interim tier IV-certified Yanmar diesel engines provide 52.1 kW

• The welded chassis aids in superior weight distribution, which further enhances stability, grading, tractive effort and provides a smoother ride.

• Flush rear door and angled rear towers provide tight rear clearance radius and excellent visibility.

• Optional rear bumper/counterweight provides additional protection and towing capability.

• Thick steel plating and heavy-duty pins and bushing strengthen the loader for extreme-duty work.

• Electronic engine control and foot throttle allow operation at partial throttle, reducing sound levels and fuel consumption.

Operator's Cabin

The extra-large, state-of-the art operator’s station on the RT175 track loader is designed for optimal operator comfort resulting in more productivity.

• Cab forward design enhances the view to the bucket.

• Level II FOPS is standard equipment.

• New, side-folding restraint bars and armrests with multiple adjustments enhance operator safety and comfort.

• Fully adjustable controls mounted to a standard mechanical suspension seat or an optional air-ride seat deliver outstanding comfort and precision control by moving with the operator during operation.

• Complicated gauges and cluttered dash readouts are eliminated with a customizable, easy-to-use multi-function display that incorporates all warning/operation lights and machine configuration screens.

• Optional pressurized sealed cab enclosure with heat/AC, sound reduction material and rear-mounted air filter provide a comfortable, clean and quiet operating environment.

Controls

Engine

The RT175 engine is packed with plenty of low-end torque, just what a track loader needs to power through the toughest jobs.

• Automatic glow module engine intake heating system provides superior cold-weather starting.



• Engine warranty, parts and service are handled through dealership servicing in conjunction with Gehl parts and service support.



Make/Model	Yanmar/4TNV98 Interim Tier 4
Type	4-Stroke Naturally Aspirated
Displacement/Cylinders	3.3 L/4
Gross Power @ rpm	52.1 kW @ 2500
Net Power @ rpm	51 kW @ 2500
Peak Torque @ rpm	242.7 Nm @ 1600
Oil Pump Capacity	10.4 L
Alternator Voltage/Amperage	14V/95A

Hydraulics

The RT175 compact track loader hydraulic system is engineered to push more material, lift heavier loads and power demanding attachments.

• Standard and optional high-flow auxiliary hydraulics are designed to handle virtually every flow/high performance attachment.

• New cast-iron pump design delivers efficient flow at higher temperatures.

• Lift cylinders incorporate cushioning for smoother operation when lowering the lift arm.

• Electro-hydraulic controlled hydrostatic transmission with direct engine coupling provides high operating efficiency and AntiStall technology keeps the power flowing.

• Power track drive motors deliver superior pushing power.

• Auxiliary hydraulic quick couplers easily connect under pressure for fast, efficient attachment changes.

Attachment System

Lift Arm

The robust lift-arm on the RT175 compact track loader is designed for optimal strength, visibility and capacity.

• Additional reach and increased dump height result in more efficient load placement and overall performance.



• Low-profile design provides outstanding forward, rear and side visibility.



• Simple "in-line" design increases structural integrity by eliminating the complex geometry and welding found on many competitive "offset" lift arm designs.



• Front channel support and large diameter pivot pins provide exceptional lateral strength and rigidity.



• Lift-arm incorporates dual bucket cylinders and two lift-arm stop blocks on the front of the main frame to evenly distribute digging forces.



Height to Hinge Pin - Fully Raised	3239 mm
Reach - Fully Raised	876 mm

Serviceability

Serviceability is very important to our customers. The RT175 is sure to exceed your service expectations.

• Large, gas-spring assisted engine cover and over-sized, flush-mounted rear door allows full access on the rear of the machine for servicing and maintenance

• Lockable compartments on the rear towers open to reveal the battery on the left and hydraulic tank on the right.

• Entire ROPS/FOPS assembly tilts rearward with large gas-springs for easy internal service access.

• Track rollers and idlers are sealed and require no maintenance.

• Patented tilt-out foot pod allows for best-in-class foot well cleanout and provides perfect access to the fuel tank and other components under the cab.

• Coded wiring takes the guesswork out of electrical system identification.
