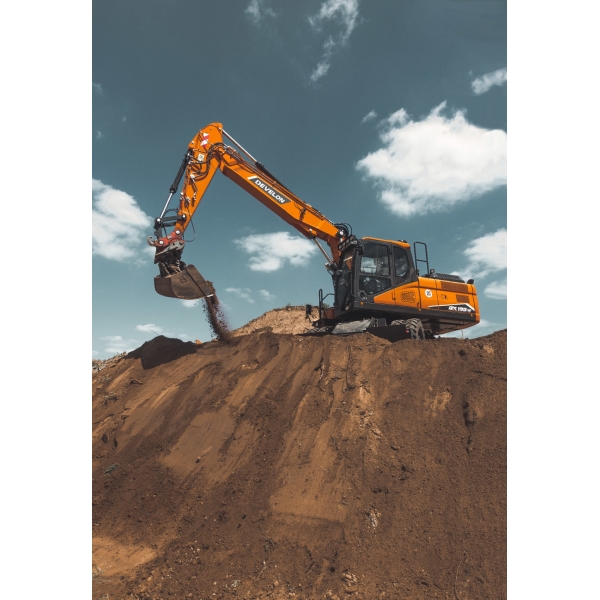

From road and street construction, trench digging, materials breaking to site preparation for laying foundations or installing utilities, the DX190W-3 offers outstanding multitask capabilities, combining productivity, power, lifting and digging capacities with the ability to travel from one site to another at up to 36 km/h.
DX190W-7
| DX190W-3 | Specifications |
| Operating weight | 18,400 – 20,300 kg |
| Engine | Doosan DL06KB |
| Engine power | 129.4 kW / 174 HP at 1900 rpm |
| Main pumps max flow | 2 x 200 l/min |
| Number of cylinders | 6 |
| Travel speed (High / Low / Creep) |
35.7 / 9.4 / 3.4 km/h |
| Maximum traction force | 11.2 t |
| Buckets | 0.38 - 0.93 m³ |
| Sound level (internal / external) | 71 dB(A) / 101 dB(A) |
| Overall width | 2534 mm |
| Tail swing radius | 2503 mm |
| Overall height (Mono / Arti boom) | 3354 mm / 3340 mm |
| Overall length (Mono / Arti boom) | 8814 mm / 8745 mm |
| Bucket digging force | 135.3 kN |
| Arm digging force (Std Front) | 96.1 kN |
| Max. digging reach (Mono / Arti boom) | 9255 mm / 9645 mm |
| Max. digging depth (Mono / Arti boom) | 5725 mm / 5915 mm |
| Max. digging height (Mono / Arti boom) | 9440 mm / 10510 mm |
