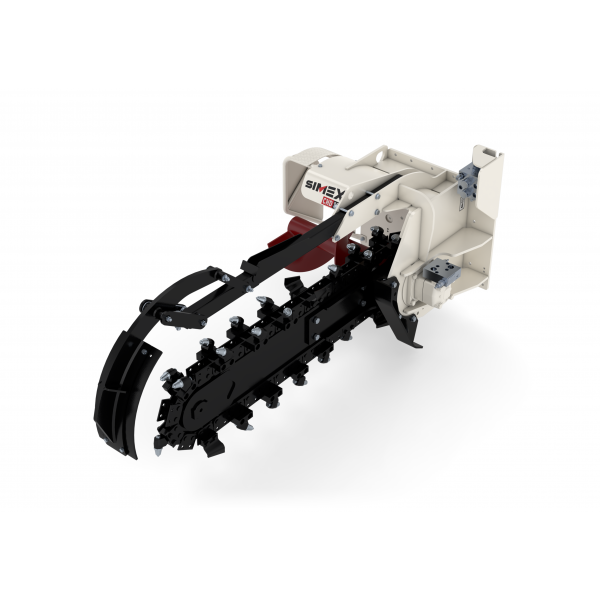

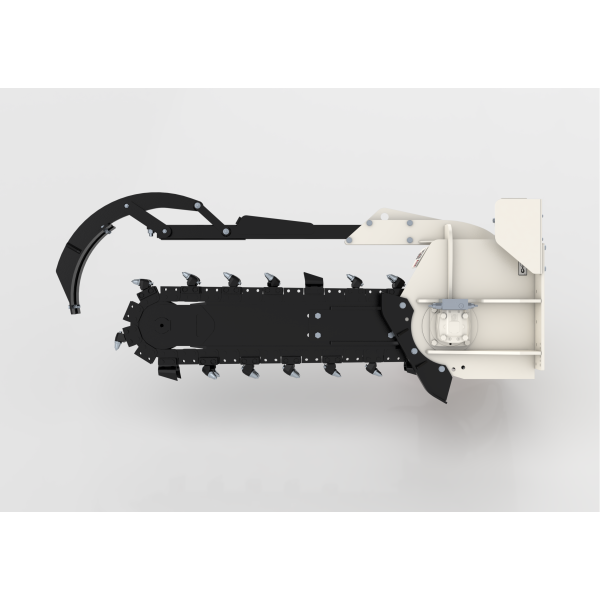

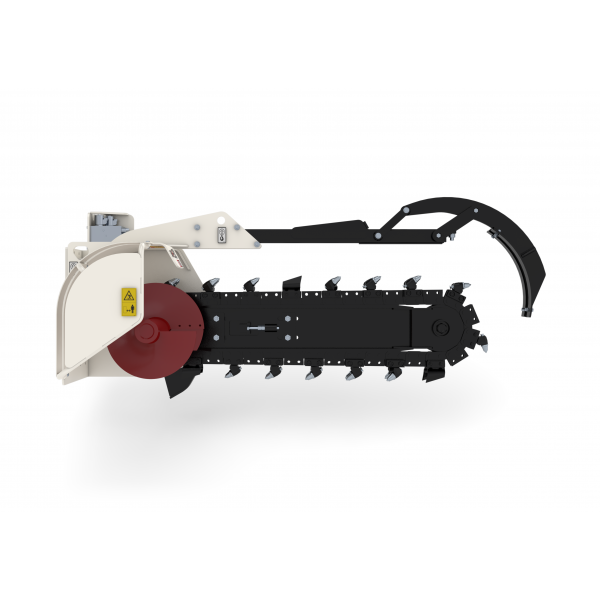

Simex CHD 120B

CHAIN TRENCHERS FOR EXCAVATORS


CHD Chain Trenchers for excavator booms are designed for set-section trenching on soft soils.


Price: P.O.A

Phone: +353 (0)1 4511282

CHD120B

More details

The discharge screw on the righthand side and the trench clearing device makes sure the trench is kept clean, while the slide provides maximum stability at any trenching depth.

Chain is available with hoe blades for soft soils or hoe blades with teeth for mixed soils.

FEATURES

  • CLEAN TRENCH
  • MAXIMUM STABILITY AT ANY DEPTH



Max. trench depth 1200 mm 47 inch
Trench width - standard 150  mm 6 inch
Trench width - optional 200-250 mm 8-10 inch
Operating weight (1)(2) 590 kg 1300 lbs
Recommended excavator size 8-15 ton 17600-33000 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
2) Pressure must be inversely proportional to the flow rate available and vice versa.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
