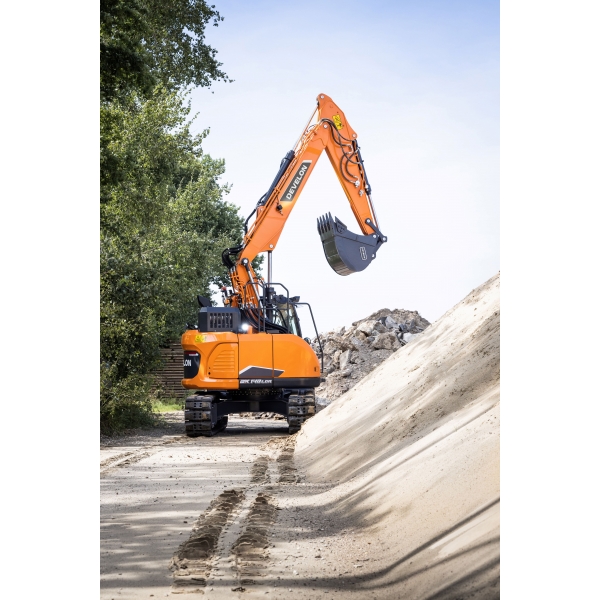

The new DX140LCR-5 excavator meets the increasing demand for reduced radius machines as an alternative to conventional models for work on urban, utility, bridge and other confined space construction sites.
DX140LCR-7
The DX140LCR-5 meet the Stage IIIB requirements by using the EGR (Exhaust Gas Recirculation) & maintenance-free catalyst technologies.
| DX140LCR-5 | Specifications |
| Operating weight | 15,100 – 15,500 kg |
| Engine | Perkins 1204F |
| Engine power | 85.9 kW / 109 HP at 200 RPM |
| Main pumps max flow | 2 x 114 l/min |
| Number of cylinders | 4 |
| Travel speed | 2.8 / 4.7 km/h |
| Maximum traction force | 16.4t |
| Buckets | 0.24 - 0.76 m³ |
| Sound level /br (internal/external) | 72 dB(A) / 101 dB(A) |
| Overall width | 2590 mm |
| Overall height (Std Front) | 2795 mm |
| Overall length (Std Front) | 7360 mm |
| Tail swing radius | 1530 mm |
| Bucket digging force | 109 kN |
| Arm digging force (Std Front) | 64 kN |
| Max. digging reach (Std Front) | 8285 mm |
| Max. digging depth (Std Front) | 5485 mm |
| Max. digging height (Std Front) | 9265 mm |
