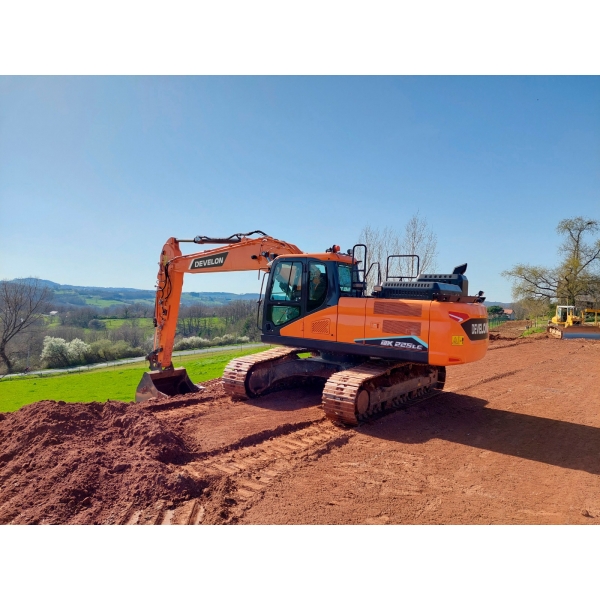

Develon DX225LC-7
The DX225LC-5 is an all-round machine. Perfect excavator for loading, pipe laying, land clearing & even demolition.
Price: P.O.A Phone: +353 (0)1 4511282
DX225LC-7
Categories
.png)
View full size
• Less noise
• Enhanced visibility
• More digging power
• Improved fuel efficiency
• Increased tractive force
| DX225LC-5 | Specifications |
| Operating weight | 21,900 - 22,800 kg |
| Engine | Doosan DL06K |
| Engine power | 124 kW / 167 HP at 1800 RPM |
| Main pumps max flow | 2 x 115 l/min |
| Number of cylinders | 6 |
| Travel speed | 3.0 / 5.5 km/h |
| Maximum traction force | 14.9 - 27.5 t |
| Buckets | 0.39 - 1.28 m³ |
| Sound level (internal / external) | 70 dB(A) (ISO 6396) |
| Overall width | 2,990 mm |
| Overall height (Std Front) | 3,005 mm |
| Overall length (Std Front) | 9,490 mm |
| Tail swing radius | 2,790 mm |
| Bucket digging force | 149.0 kN |
| Arm digging force (Std Front) | 100.0 / 105.9 kN |
| Max. digging reach (Std Front) | 9,885 mm |
| Max. digging depth (Std Front) | 6,585 mm |
| Max. digging height (Std Front) | 9,560 mm |
