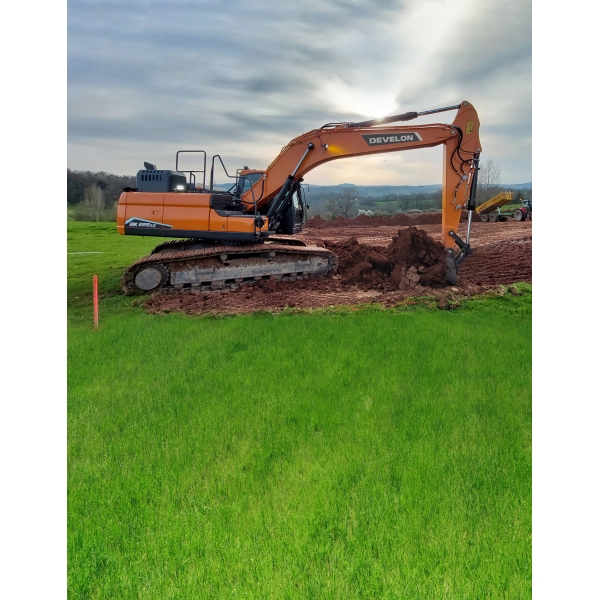

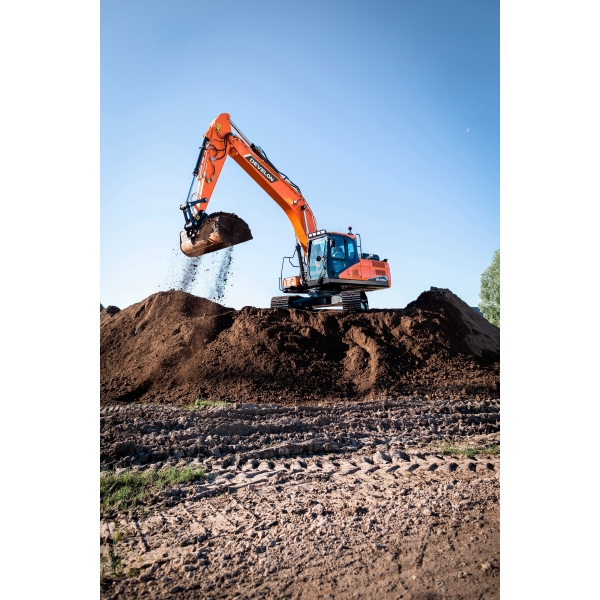

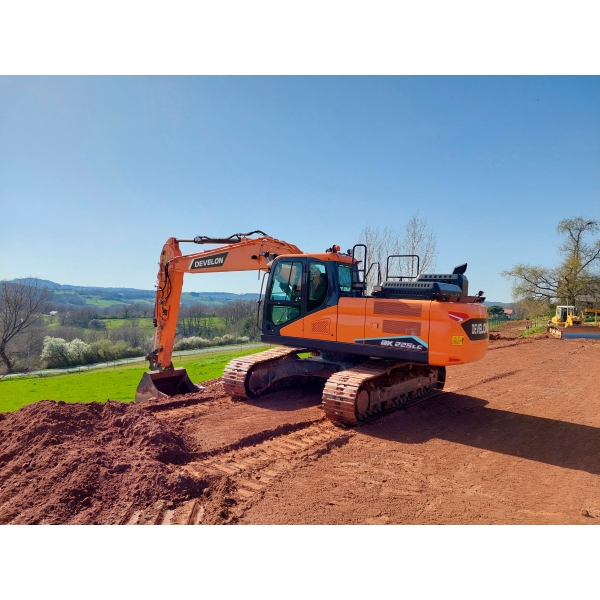

Develon DX255LC-7
The DX255LC-5 is equipped with the legendary DL06P – surely one of the most reliable and fuel-efficient engines DOOSAN has ever designed.
Price: P.O.A Phone: +353 (0)1 4511282
DX255LC-7
Categories
.png)
View full size
| DX255LC-5 | Specification |
| Operating weight | 25,500 kg |
| Engine | Doosan DL06P |
| Engine power | 141 kW (190 HP) @ 1900 rpm (SAE J1995) |
| Main pumps max flow | 2 x 219 l/m |
| Number of cylinders | 6 |
| Travel speed | 3.1 / 5.3 km/h |
| Maximum traction | 28.5 ton |
| Buckets | 0.51 – 1. 49 m³ |
| Sound level (internal / external) |
70 dB(A) - 103 dB(A) |
| Overall width | 3200 / 3000 mm (Narrow) |
| Overall height (Std Front) | 3200 mm |
| Overall length (Std Front) | 10080 mm |
| Tail swing radius | 3040 mm |
| Bucket digging force | 17.0 / 17.9 t |
| Arm digging force (Std Front) | 12.1 / 12.8 t |
| Max. digging reach (Std Front) | 10175 mm |
| Max. digging depth (Std Front) | 6810 mm |
| Max. digging height (Std Front) | 7025 mm |
