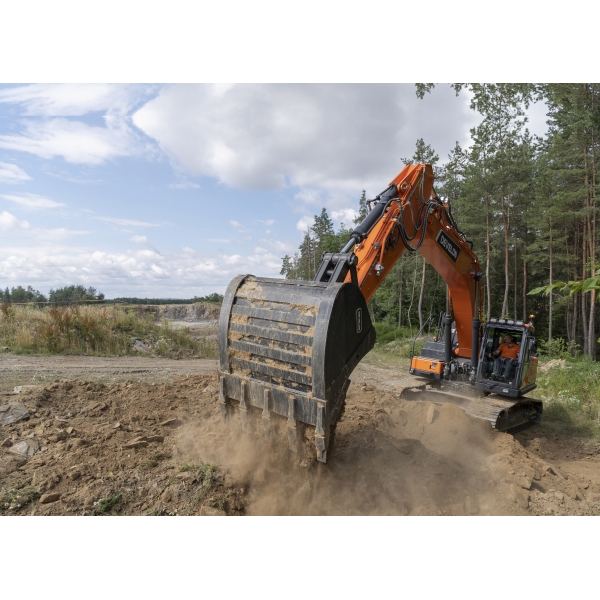

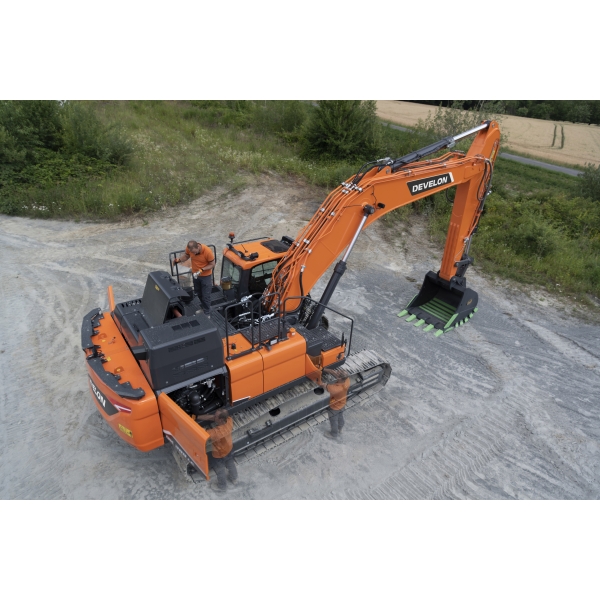

Doosan’s 30-tonne DX300LC-5 Stage IV compliant crawler excavator features a distinctive new machine styling scheme and raises even higher the already high standards set by the previous LC-3 range.
DX300LC-7
| DX300LC-5 | Specifications |
| Operating weight | 30,900 kg |
| Engine | Scania DC09 |
| Engine power | 202 kW (271 HP) @ 1800 rpm (SAE J1995) |
| Main pumps max flow | 2 x 248 l/m |
| Number of cylinders | 5 |
| Travel speed | 3.0 / 5.2 km/h |
| Maximum traction | 34.9 / 19.4 ton |
| Buckets | 0.80 – 1.75 m³ |
| Sound level (internal / external) | 71 dB(A) - 104 dB(A) |
| Overall width | 3200 / 3000 mm (Narrow) |
| Overall height (Std Front) | 3370 mm |
| Overall length (Std Front) | 10570 mm |
| Tail swing radius | 3230 mm |
| Bucket digging force | 20.1 t |
| Arm digging force (Std Front) | 13.9 t |
| Max. digging reach (Std Front) | 10725 mm |
| Max. digging depth (Std Front) | 7305 mm |
| Max. digging height (Std Front) | 10325 mm |
