This new 40-tonne excavator offers the strength and productivity needed for heavy-duty work such as large-scale earthmoving, moving rock, pulling down buildings, secondary breaking, loading haulers, and pipeline projects found on quarrying and mining, highway, aggregate, demolition, utility and general construction projects.

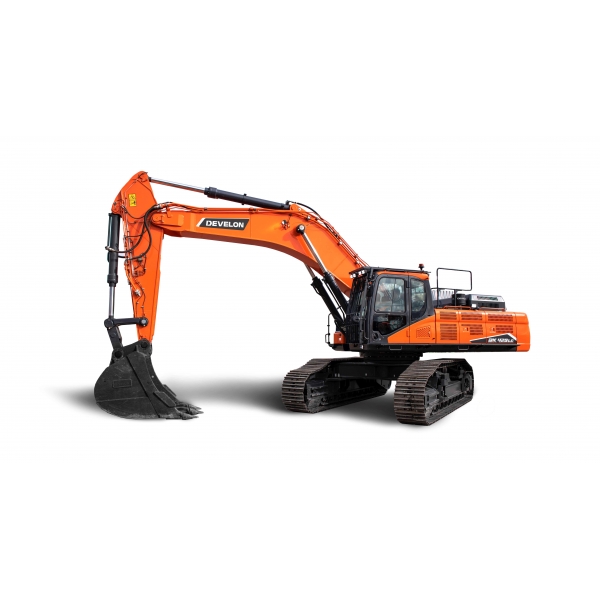

DX420LC-7
| DX420LC-5 | Specifications |
| Operating weight | 42,600 kg |
| Engine | Scania DC13 |
| Engine power | 257 kW (344.6 HP)@ 1800 rpm (SAE J1995) |
| Main pumps max flow | 2 x 335 l/m |
| Number of cylinders | 6 |
| Travel speed | 3.1 / 5.1 km/h |
| Maximum traction | 34.8 ton |
| Buckets | 1.44 – 2.16 m³ |
| Sound level (internal / external) | 71 dB(A) - 106 dB(A) |
| Overall width | 3350 / 3000 mm (Narrow) |
| Overall height (Std Front) | 3455 mm |
| Overall length (Std Front) | 11750 mm |
| Tail swing radius | 3760 mm |
| Bucket digging force | 24.2 t |
| Arm digging force (Std Front) | 19.3 t |
| Max. digging reach (Std Front) | 11495 mm |
| Max. digging depth (Std Front) | 7740 mm |
| Max. digging height (Std Front) | 10820 mm |
