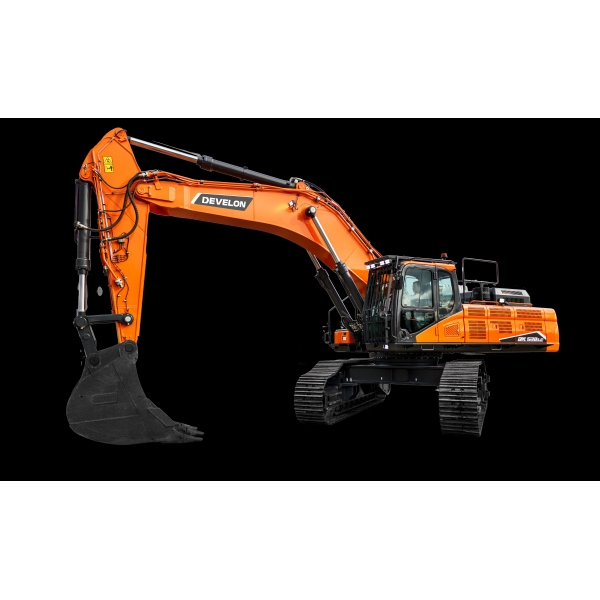

Develon DX530LC-7

New features to boost uptime and increase the profitability of our machines, including: further significant fuel and cost reductions with the introduction of the renowned, cutting-edge SCANIA engines.


Price: P.O.A

Phone: +353 (0)1 4511282

DX530LC-7

More details

DX530LC-5 Specifications
Operating weight 52,100 kg
Engine Scania DC13
Engine power 283 kW (379.5 HP) @ 1800 rpm (SAE J1995)
Main pumps max flow 2 x 355 l/m
Number of cylinders 6
Travel speed 3.1 / 5.4 km/h
Maximum traction 38.8 ton
Buckets 1.71 – 3.6 m³
Sound level (internal / external) 71 dB(A) - 106 dB(A)
Overall width 3340 / 2990 mm (Narrow)
Overall height (Std Front) 4165 mm
Overall length (Std Front) 11530 mm
Tail swing radius 3800 mm
Bucket digging force 27.5 t
Arm digging force (Std Front) 25.1 t
Max. digging reach (Std Front) 10765 mm
Max. digging depth (Std Front) 6765 mm
Max. digging height (Std Front) 9705 mm
