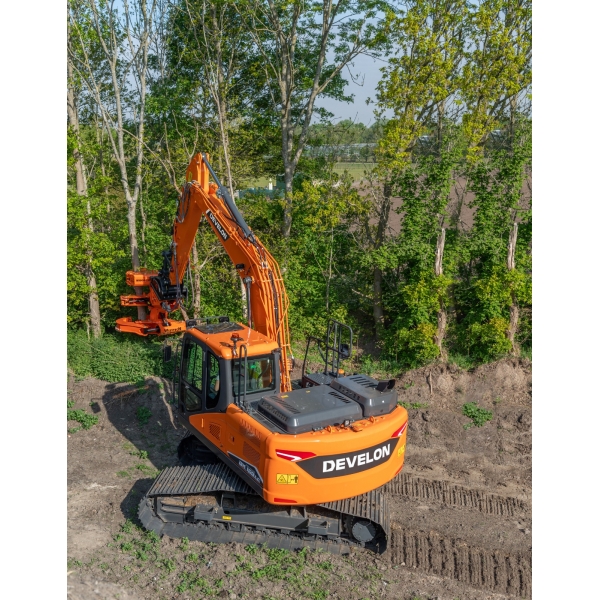

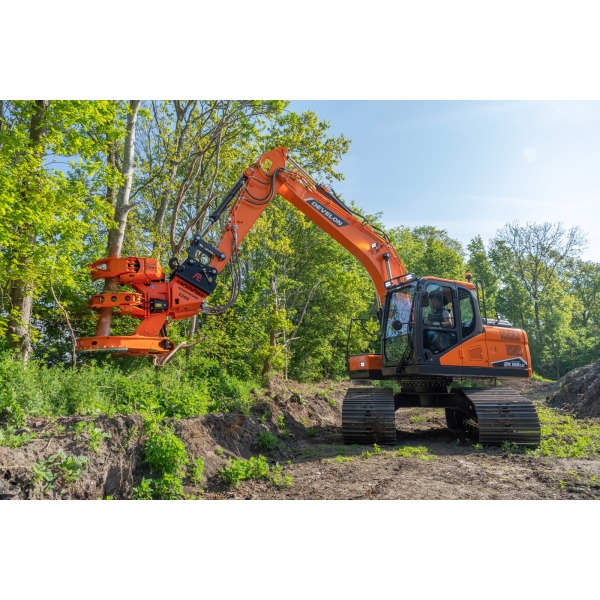

DX160LC-5 HT gives all the upper-structure advantages of Doosan’s top-selling 16-tonne excavator – including the power and torque of the Perkins 1204F engine – combined with the High Track undercarriage system of an 18-tonne machine!The reinforced track frame, higher ground clearance and strong traction will allow you to work confidently in the toughest, most demanding forestry or utilities sites.
DX160LC-7 HT
| DX160LC-5 HT | Specifications |
| Operating weight | 16,800 kg |
| Engine | Perkins 1204F |
| Engine power | 81.6kW / 109Hp @2000rpm (SAE J1349) |
| Main pumps max flow | 2 x 114 l/m |
| Number of cylinders | 4 |
| Travel speed | 3.68/2.24 km/h |
| Maximum traction | 12.5 / 20.5 t |
| Buckets | 0.51 – 0.45 m³ |
| Sound level (internal / external) | 70 dB(A) - 99 dB(A) |
| Overall width | 2,800 mm |
| Overall height (Std Front) | 3,065 mm |
| Overall length (Std Front) | 7,720 - 7,650 mm |
| Tail swing radius | 2,205 mm |
| Bucket digging force | 11,1 t |
| Arm digging force (Std Front) | 6.0 t |
| Max. digging reach (Std Front) | 8080 - 8475 mm |
| Max. digging depth (Std Front) | 5355 - 5850 mm |
| Max. digging height (Std Front) | 8940 - 9025 mm |
