USER FRIENDLY
OPTIMIZE SECURITY FOR THE OPERATOR AS FOR THE WORKERS’ TEAM OF BOTH URBAN AND SUBURBAN CONSTRUCTION SITES:
- Maintenance feet on the ground
- Oscillation locking by the brake pedal and the joystick
- Reduced access height
- Excellent compactness
- Optional integrated and automated cameras
- Excellent visibility
CLIMB UP AND DOWN EASILY
THANKS TO THE LOWERED CENTRE OF GRAVITY OF THE MACHINE, THE CABIN IS PERFECTLY ACCESSIBLE TO THE DRIVER, WITHOUT MAKING TOO MUCH EFFORT OR TAKING ANY RISKS.
The cab is 20% lower compared to rival products on the market so now entering and exiting the vehicle requires much less effort, and is further eased by the addition of a step that has been perfectly incorporated into the machine’s design. One small step for man; one giant leap for worksite safety.
THE QUEST FOR SIMPLICITY: DRIVING OUR RESEARCH
THE MWR REPRESENTS A NEW WAY TO INTERACT WITH CONSTRUCTION VEHICLES, THANKS TO ITS COMPLETELY REDESIGNED INTERNAL AND EXTERNAL ERGONOMICS AND UNIQUE INTERFACE BETWEEN HUMAN-MACHINE THAT COMBINES ACCESSIBILITY AND SAFETY.
Each and every driver action is simplified, affording greater protection of everybody on the worksite. When it comes to innovation, ’less is more’ is definitely one of the keys to mecalac’s success.

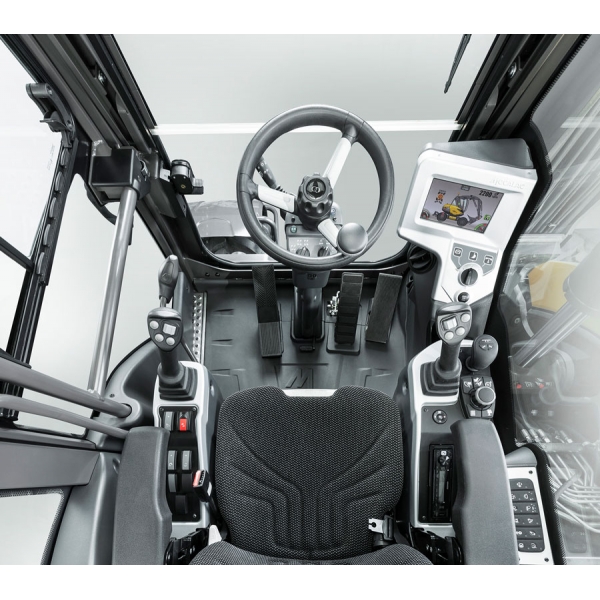

DRIVING USER-FRIENDLINESS

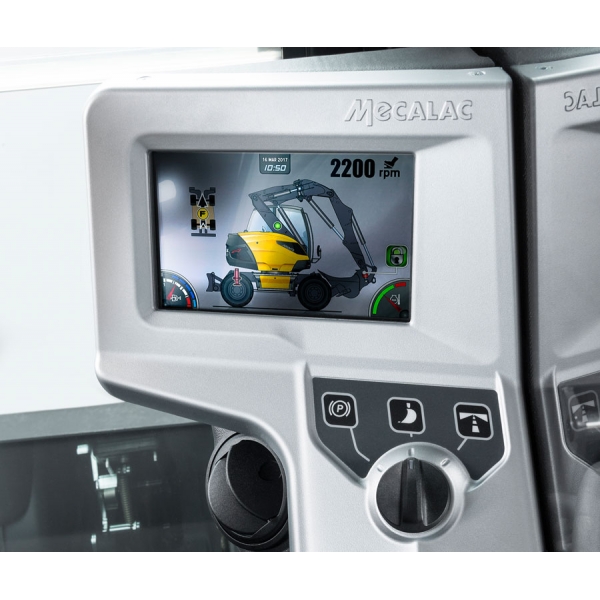

PARKING, WORK OR ROAD MODE, IN ONE SINGLE SWITCH.
Thanks to the unique central selector, the driver can switch into road or parking mode in a single movement, thus sparing 7 to 10 manipulations. With this unique global exclusivity, everything can be done instantly by selecting the desired configuration.
With this unique, worldwide exclusive, everything can be done instantly by selecting the desired configuration. This guarantees faultless and ultra- safe driving on construction sites, leaving the driver free to calmly focus on the tasks at hand and take full control of the machine.
OPTIMAL PERFORMANCES
MWR MACHINES ARE EQUIPPED WITH NUMEROUS TECHNICAL CHARACTERISTICS FOR OPTIMAL CONSTRUCTION SITE MANAGEMENT ON ALL TYPES OF TERRAIN.
- Naturally balanced
- All terrain capacity
- Manœuverability
- Agility
- Compactness

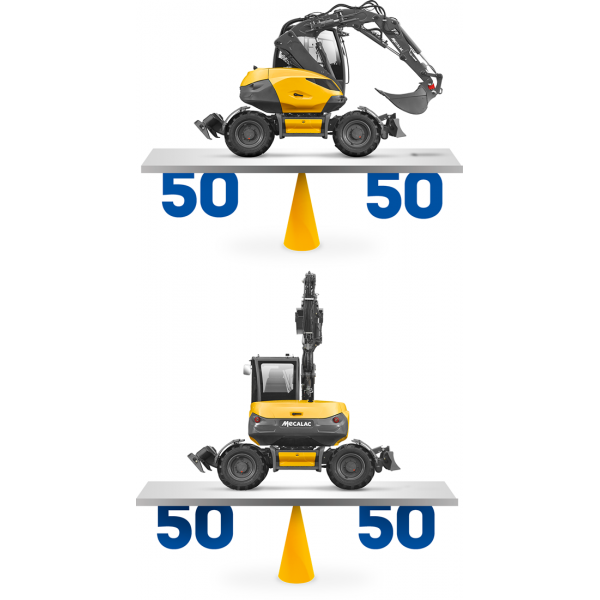

NATURALLY BALANCED
THE NEW MWRS BENEFIT FROM 360° ISO STABILITY: THIS MEANS THE MACHINE’S STABILITY REMAINS THE SAME REGARDLESS OF THE ROTATION ANGLE OF THE UPPER CARRIAGE.
Lift, place, move, unload... all without moving. The new MWRs transform worksite logistics thanks to their incredible stability in any position and on any terrain. Whatever the conditions, they stay balanced both when travelling in transfer operations between sites as well as during work phases. This gives them 360° lifting performance - an extraordinary feat.

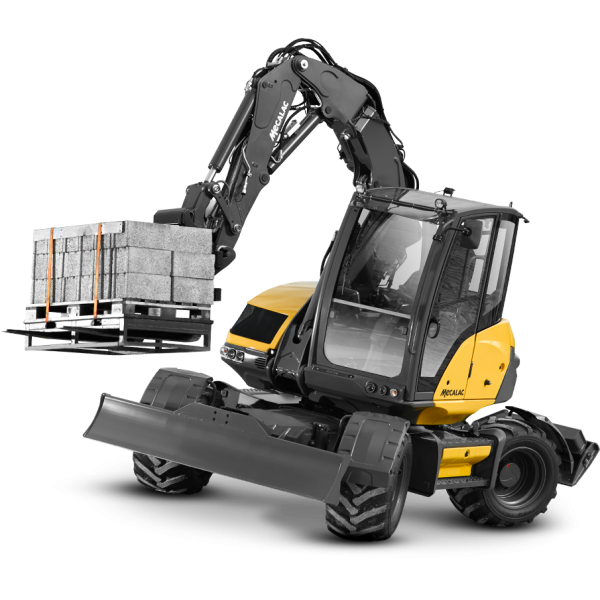

AN UNRIVALLED COMPACTNESS/LIFTING CAPACITY RATIO
The unique architecture of the new mwrs makes these powerful and precise handling machines capable of lifting up to 3 tons to 3 m and 360°
AMPLITUDE
Equipped with a loader bucket or with pallet forks, the new mwrs allow for an unusual range of amplitude whether this is positive for loading a truck or negative for offloading pallets.

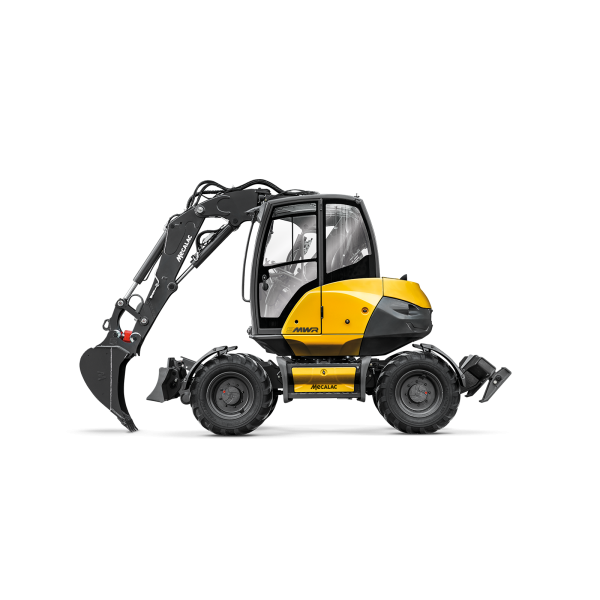

GROUND CLEARANCE
THE LOWERED CENTER OF GRAVITY HAS ABSOLUTELY NO INCIDENCE ON THE GROUND CLEARANCE HEIGHT, WHICH IS AN EXCLUSIVE ’MADE IN MECALAC’ PARADOX.
In order to guarantee the machine’s mobility in spite of ground’s unevenness, the machine keeps enough height to avoid rubbing and risks of tearing out the undercarriage.
FEATURES
Total operating weight (kg) |
7900 / 9000 |
|
Overall width (mm) |
2310 |
|
Tail swing radius (mm) |
1350 |
|
Travel speed (km/h) |
20 / 35 |
|
Engine power (kW/hp) |
55,4 (75) |
|
Tear-out force / Loader (daN) |
3300 |
|
Break-out force / Excavator (daN) |
5000 |
|
+ and - with forks (mm) |
+5300 / -2900 |
|
Turning width (mm) |
2794 |
|
Tear-out force (daN) |
2800 |
|
Max. depth (mm) |
-3500 |
