INNOVATION
AN ESSENTIAL PART OF MECALAC'S DNA
A single selector - a unique Mecalac feature - enables the 12MTX to change configuration instantly. With an obviously simple gesture, the driver sets the control to those of an excavator or a loader, or put into parking or driving mode.

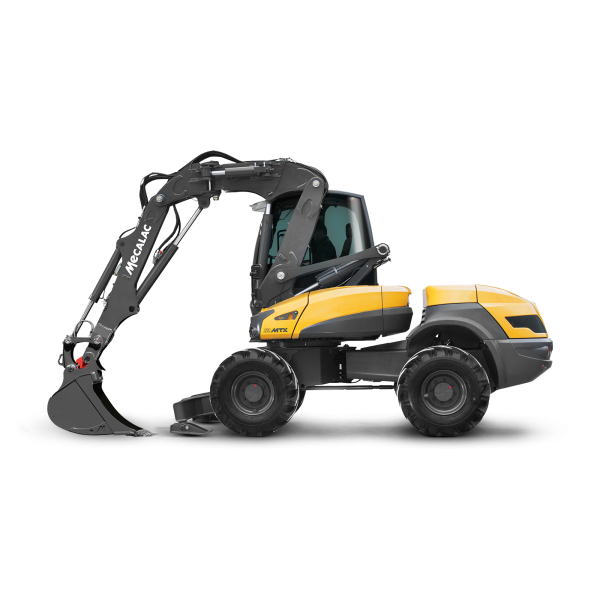

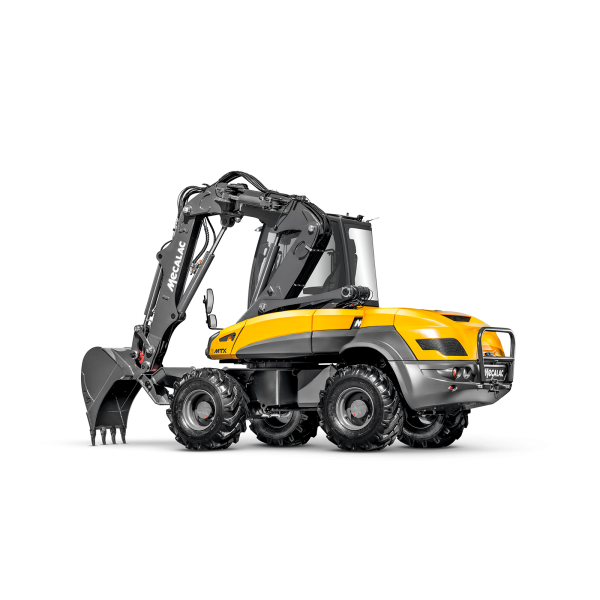

12MTX
| Total operating weight (kg) | 9700 | |
|---|---|---|
| Overall width (mm) | 2380 | |
| Tail swing radius (mm) | 1385 | |
| Turning width (mm) | 2710 | |
| Travel speed (km/h) | 32 | |
| Engine power (kW/hp) | 74/100 (STAGE III B) | |
| Engine Power (kW/hp) | 85/115 (STAGE IV) | |
| Break-out force / Loader (daN) | 6400 | |
| Max. reach (mm) | 7100 | |
| Max. depth (mm) | 4100 | |
| Tear-out force / Excavator (daN) | 3400 | |
| Break-out force / Excavator (daN) | 6200 | |
| + and - with forks (mm) | + 6000 / - 3700 |
