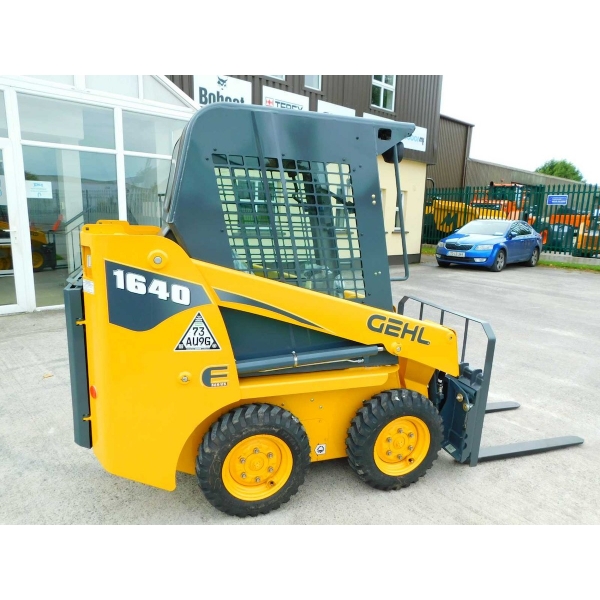

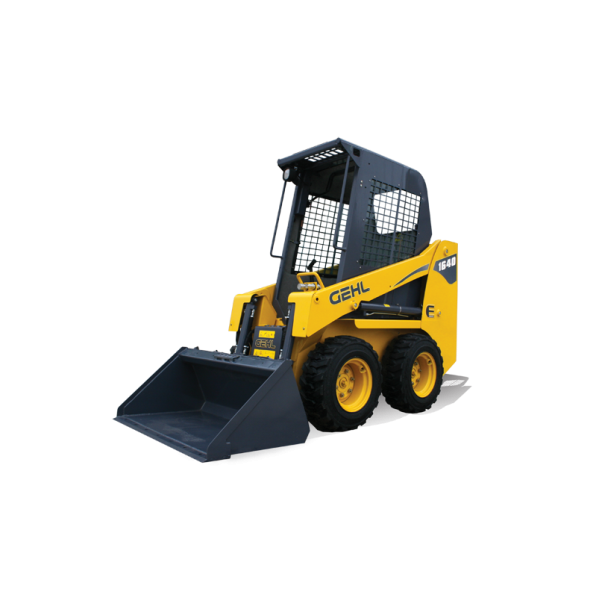

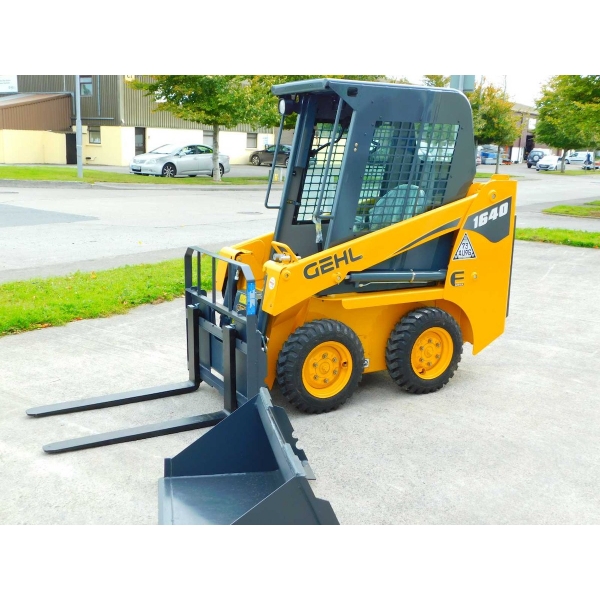

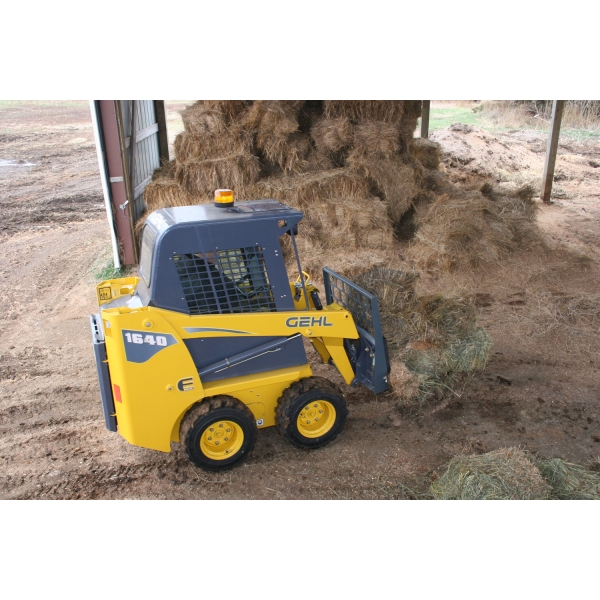

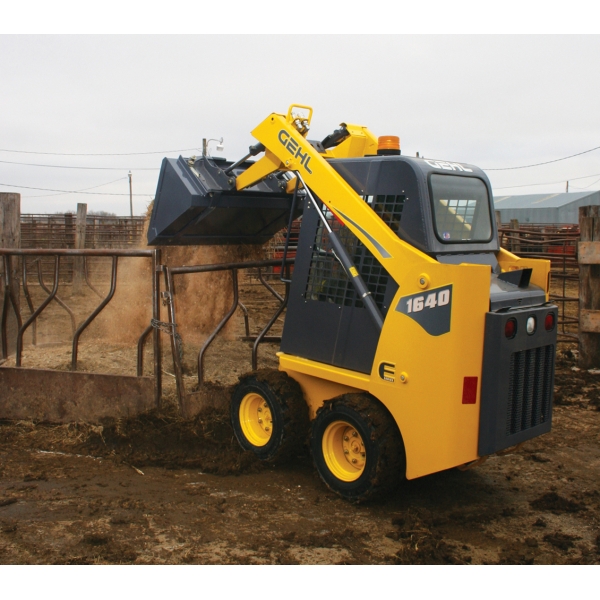

Gehl 1640E

The 1640E Skid Loader was designed with quality in mind.

There are few tasks this loader cannot handle.


Price: P.O.A

Phone: +353 (0)1 4511282

1640E

More details

Performance


  • Power-view® lift arm provides strength, durability and excellent view of the tires and sides of the loader

  • Universal-style quick-attach system makes attachment changes quick and easy

  • Thick steel plating and heavy-duty pins and bushing strengthen the loader for extreme-duty work.

  • SAHR (spring-applied, hydraulic release) brake system responds quickly, holding the loader whenever the operator leaves the seat
Rated Operating Capacity 386 kg
Height to Hinge Pin - Fully Raised 2438 mm
Overall Width 909 mm
Standard Specification Tire Size 8.70 x 12


The 1640E skid Loader was designed with quality in mind. There are few tasks this loader cannot handle.

  • Power-view® lift arm provides strength, durability and excellent view of the tires and sides of the loader

  • Universal-style quick-attach system makes attachment changes quick and easy

  • Thick steel plating and heavy-duty pins and bushing strengthen the loader for extreme-duty work.

  • SAHR (spring-applied, hydraulic release) brake system responds quickly, holding the loader whenever the operator leaves the seat

Rated Operating Capacity 386 kg
Height to Hinge Pin - Fully Raised 2438 mm
Overall Width 909 mm
Standard Specification Tire Size 8.70 x 12

Operator's Cabin

No sacrifice was made to operator comfort or safety in the 1640E Skid Loader.

Gehl 1640E Skid Steer Loader Operator's Cabin
  • Deluxe, high-back seat standard or optional highback suspension seat provide the level of comfort required by any operator

  • Unique restraint bar design equipped with Hydraloc system provides enhanced comfort and optimum safety

  • Upper, side-corner instrument panel is easily visible from the operator’s seat

  • ROPS/FOPS equipped with safety glass side windows, and top and rear windows to eliminate dirt and debris, enhance safety and reduce sound levels

  • Standard front and rear work lights allow for enhanced visibility for night-time operation

Controls

 Ergonomic controls in the 1640E Skid Loader provide smooth loader and attachment operation.

Gehl 1640E Skid Loader Inside Cabin
  • Hand and foot throttle are standard equipment, providing quieter operation and less fuel consumption

  • T-Bar hands-only drive control system

Engine

Equipped with a powerful 17.9 kW Yanmar diesel engine, the 1640E Skid Loader can tackle any challenge.

1640E Engine Access
  • Liquid-cooled for superior performance in all weather conditions

  • Excellent cold weather starting with glow plug assist system
Make Yanmar
Model 3TNV82 Stage 3A
Net Power @ rpm 17.9 kW @ 2400
Maximum Torque @ rpm 86 Nm @ 1200
Displacement 1.3 L

Hydraulics

The 1640E provides 38.2 L/min of hydraulic flow powering a variety of attachments to get work done faster.

Hydraulics on Gehl 1640E Skid Steer
  • Direct-drive hydrostatic pump with self-neutralizing feature provides 100% efficient drive from engine to pump, requiring no maintenance

  • Hydraloc™ Automatic Interlock System increases operator safety by locking lift, tilt and drive systems when the operator leaves the seat, raises the restraint bar or turns off the ignition switch
Auxiliary Hydraulics - Standard 38.2 L/min
High-Flow Auxiliary Hydraulics N/A
Filtration 4 micron
Reservoir Capacity 27.3 L

Lift Arm

Strong lift arm provides strength, durability and excellent view of the tires and sides of the loader for increased precision and safety.

Gehl 1640E Skid Loader Lift Arm

Serviceability

Engineers kept service in mind when designing the 1640E Skid Loader. Easily accessible maintenance points coupled with high-quality components, reduce down-time.

  • A large engine cover and Tilt-back ROPS/FOPS allow access to daily maintenance points, as well as service access when needed

  • A removable skid-plate cover located under the rear of the loader allows for easy clean-out and access to additional service points

  • On both sides of the loader chassis runs a fully adjustable bow-tie chain drive system sealed in a continuous oil bath

  • Heavy-duty, two-inch axles, pre-lubed at the factory and sealed with multiple lip seals, don’t require greasing or maintenance
E Series Skid Steer Loader 1640E Service Access
