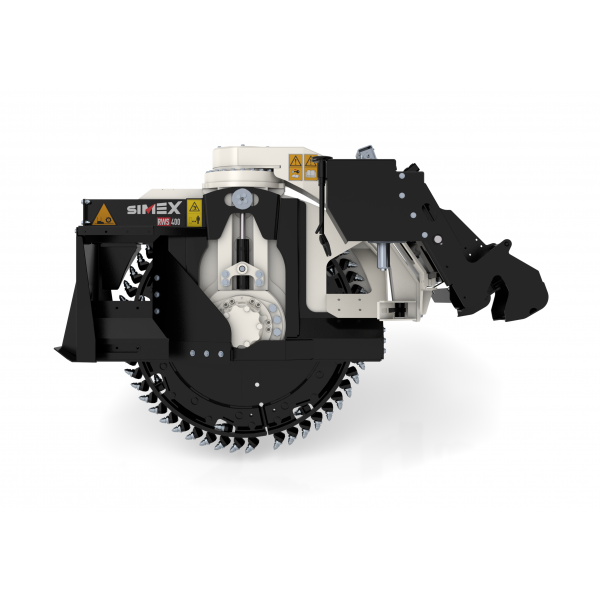

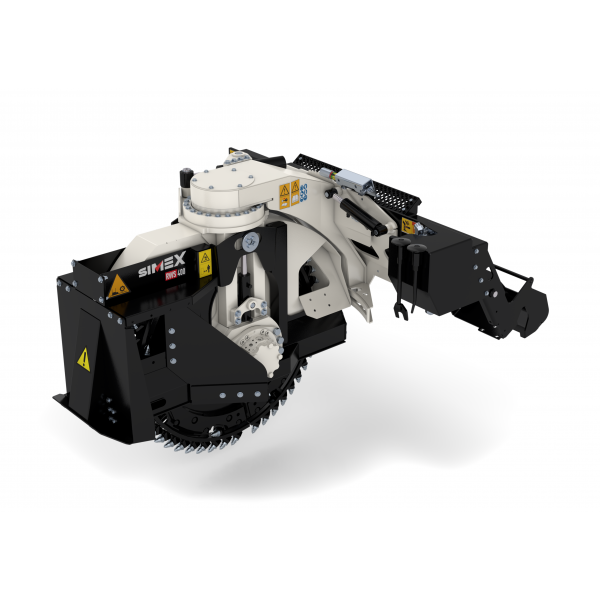

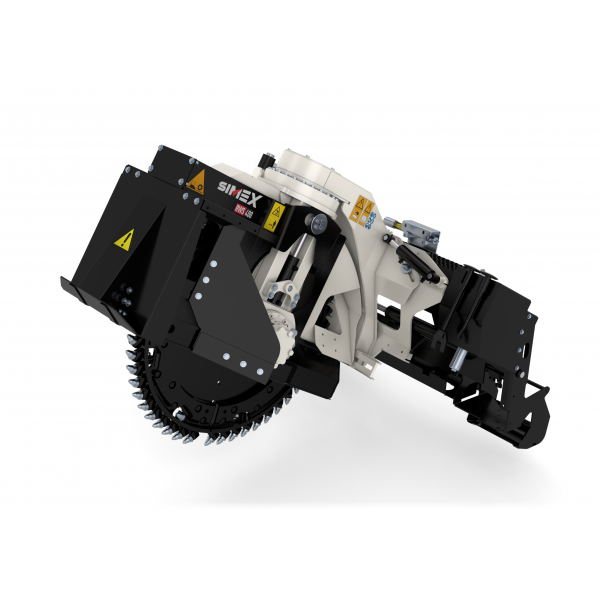

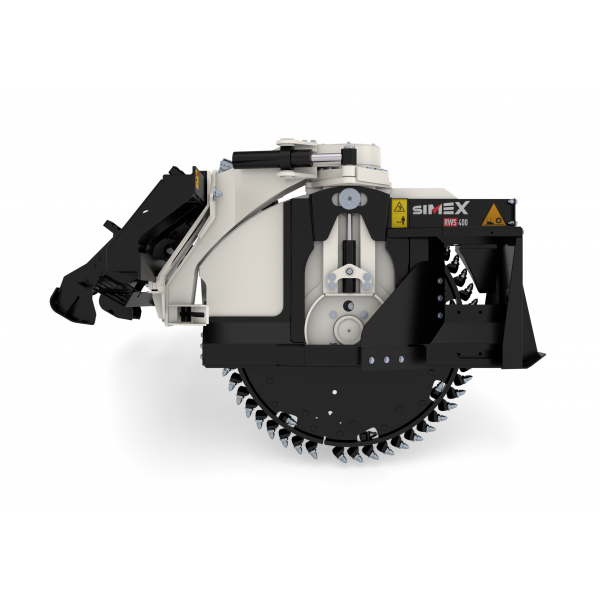

Simex RWS 400

Full protection of the wheel at any working depth guarantees maximum safety of persons and property.  Self-leveling feature ensures constant trench depth and allows operator excellent visibility in any condition.

RWS 400

The innovative RWS can make curved trenches with radii reduced up to 5 m; the special steering unit acts on the axis of the wheel saw to the right and left.

















Trench width	50-80-100-120 mm	2-3-4-5 inch
Trench depth	250-400 mm	10-16 inch
Operating weight (1)	1100 kg	2420 lbs
Required oil flow	90-160 l/min	24-43 gpm

(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex / EMS does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
