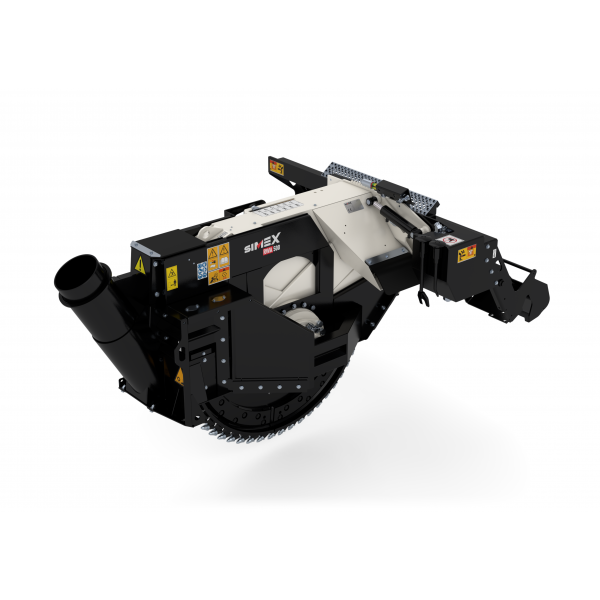

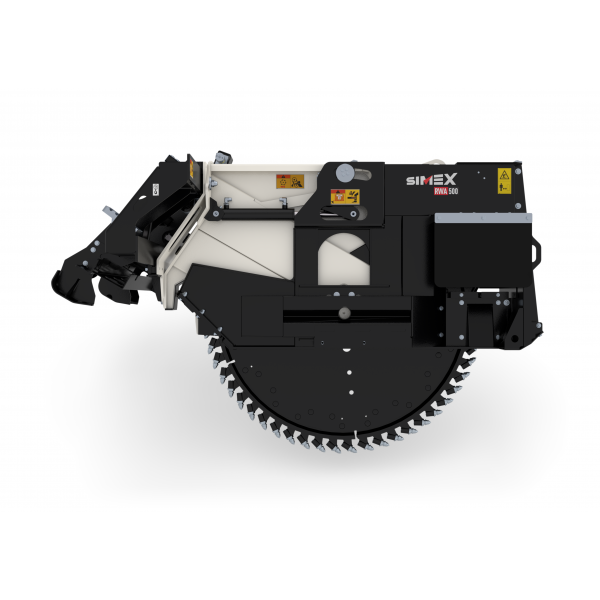

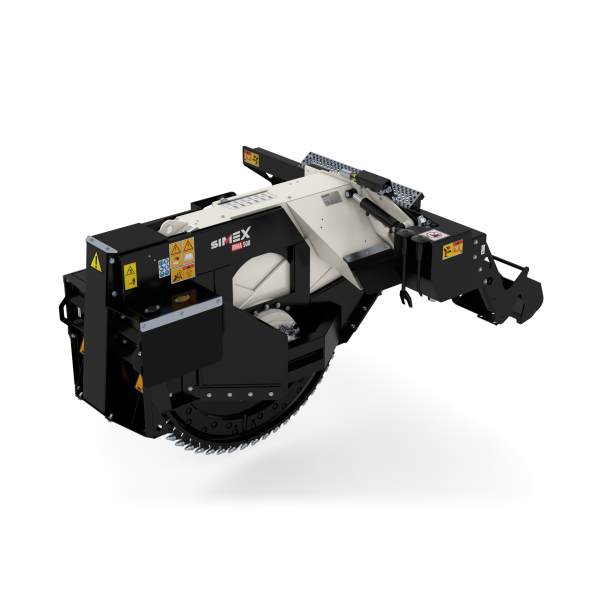

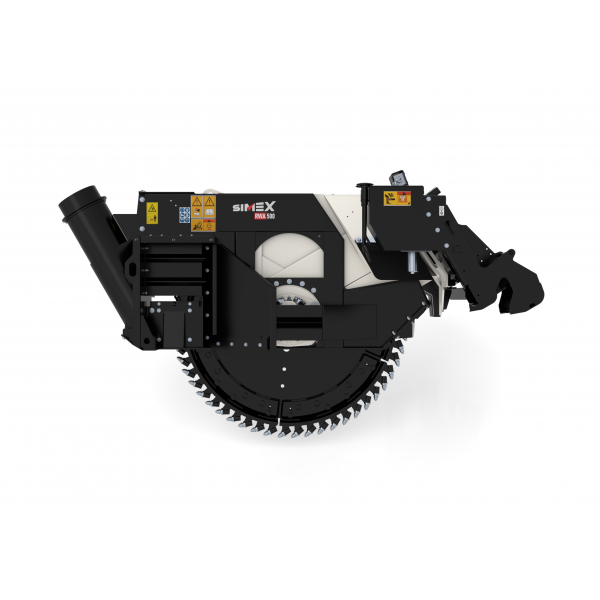

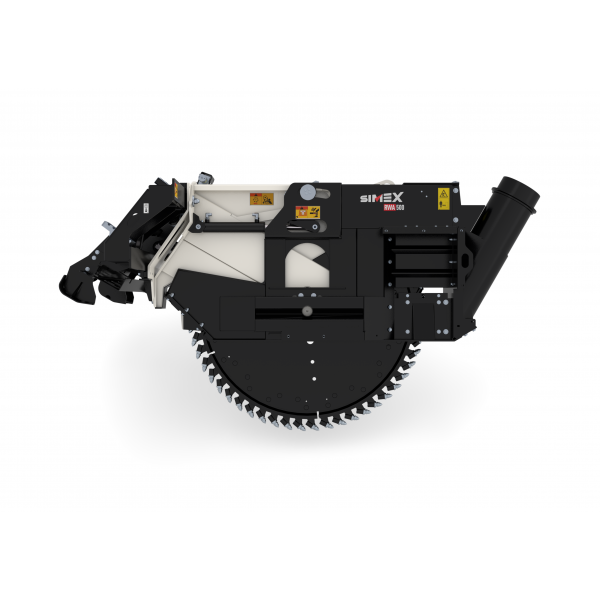

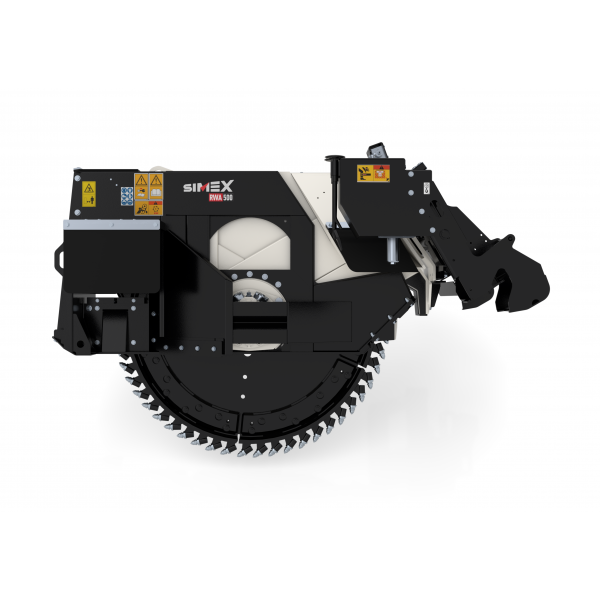

Simex RWA 500

Full protection of the wheel at any working depth guarantees maximum safety of persons and property.  Self-leveling feature ensures constant trench depth and allows operator excellent visibility in any condition.

RWA 500

Features hydraulic lateral tilt: maintains wheel saw vertical in any condition. Allows milling near curbs with the wheel saw in vertical position even when the prime mover is not parallel to the road surface, compensating for a difference in level up to 200mm.
















































Trench width	50-80-100-120 mm	2-3-4-5 inch
Trench depth	250-500 mm	10-20 inch
Operating weight (1)	1300-1400 kg	2860-3080 lbs
Required oil flow	100-160 l/min	27-43 gpm

(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex / EMS does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
