Home > Simex>Wheel Saws>Simex RWE 50

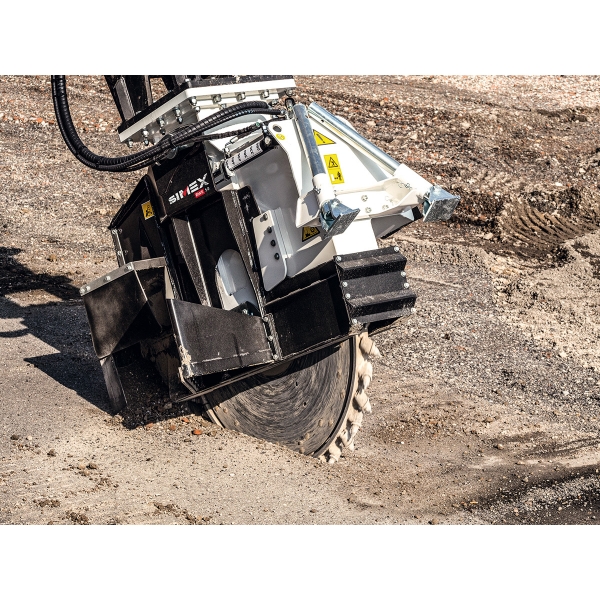

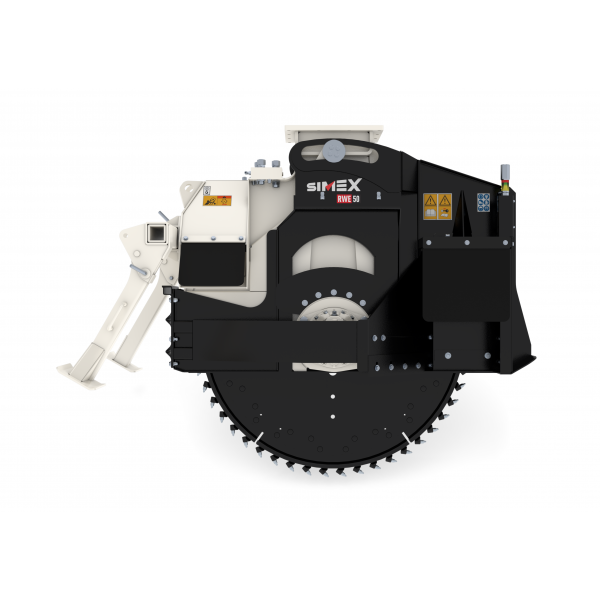

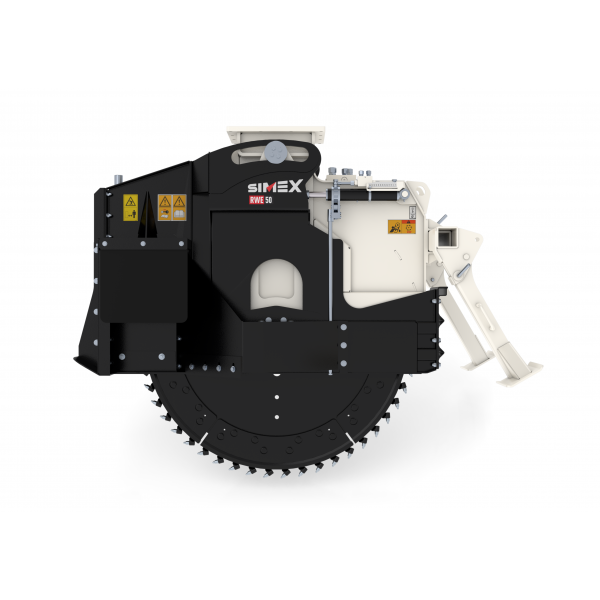

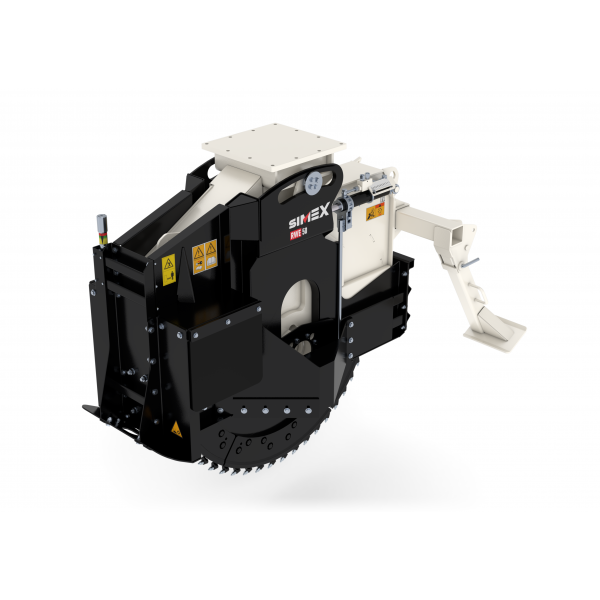

Simex RWE 50

WHEEL SAWS FOR EXCAVATORS

Intended for excavator boom mounting, they are specially indicated for cutting and narrow trenching for fiber optics installation on hard and compact surfaces: asphalt, cement and rock.


Price: P.O.A

Phone: +353 (0)1 4511282

RWE50

More details

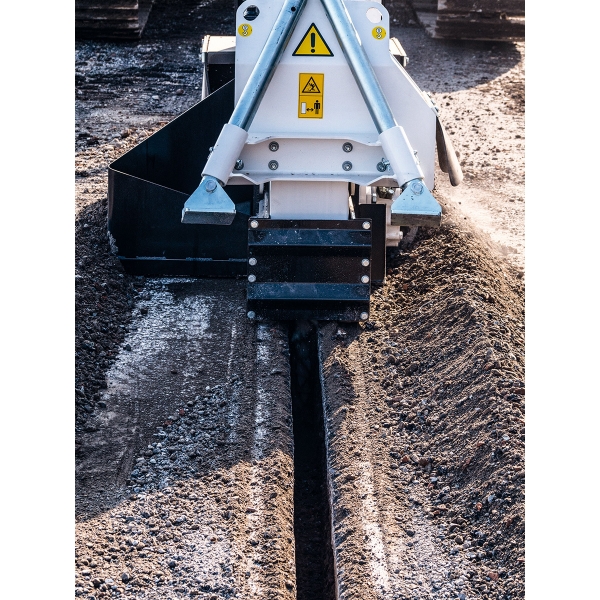

Slides parallel to the ground. Constant trenching depth. Mechanical or hydraulic adjustment of trench depth. Clean trench: the special design of outlets allows trench to be cleared efficiently at the depth programmed.

FEATURES

  • CLEAN TRENCH
  • IDEAL FIBER OPTICS INSTALLATION
  • HIGH PERFORMANCE
  • HIGH CUTTING FORCE



Segmented wheel: Disk with removable, interchangeable segments allows quick variation of the trench width while maintaining the same base wheel.

Recommended excavator weight (1) 14-18 ton 28000-39800 lbs
Depth 300-500 mm 12-20 inch
Required oil flow 100-160 l/min 26-42 gpm
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
