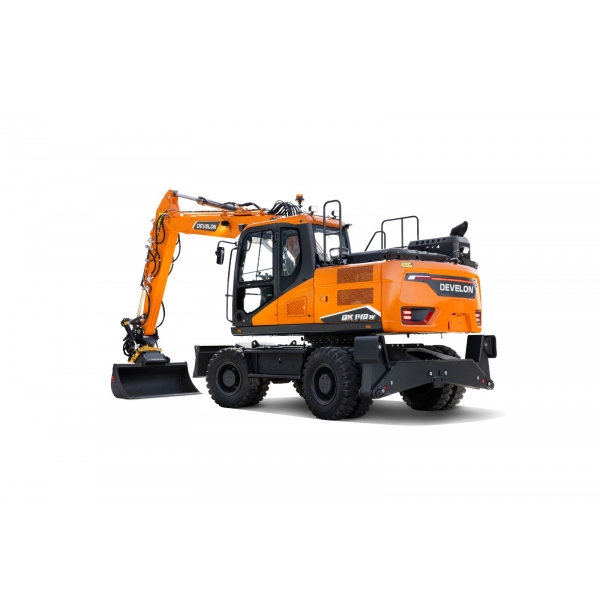

Develon DX140W-7

The DX140W-5 is strong and robust enough to tackle your most demanding jobs, exceptionally stable, highly mobile and yet easy on the environment and your pocket.

Keep profits up and costs down with a range of new features.



Price: P.O.A

Phone: +353 (0)1 4511282

DX140W-7

More details

DX140W-5 Specifications
Operating weight 14,213 - 16,273 kg
Engine Doosan DL06KB
Engine power 102 kW / 137 HP at 2000 RPM
Main pumps max flow 2 x 170 l/min
Number of cylinders 6
Travel speed (High / Eco / Low / Creep) 37 / 32 / 10 / 3.5 km/h
Maximum traction force 8300 kgf
Buckets 0.24 - 0.76 m³
Sound level (internal / external) 69 dB(A) / 102 dB(A)
Overall width 2500 mm
Tail swing radius 2200 mm
Overall height (Mono/Arti boom) 3590 mm / 3950 mm
Overall length (Mono/Arti boom) 7190 mm / 7185 mm
Bucket digging force 114.9 kN
Arm digging force (Std Front) 79.6 kN
Max. digging reach (Mono / Arti boom) 7585 mm / 8670 mm
Max. digging depth (Mono / Arti boom) 4490 mm / 5455 mm
Max. digging height (Mono / Arti boom) 8195 mm / 9565 mm
