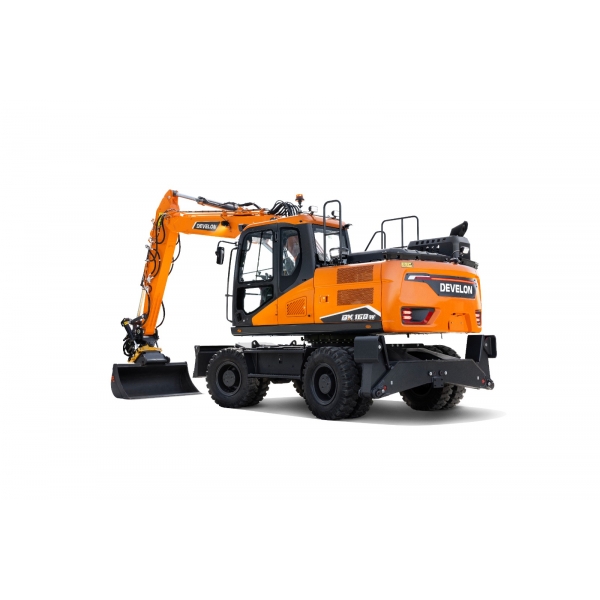

The DX160W-3 takes even the heaviest tasks in its stride with efficient, dependable performance that saves you time and money.
Increased digging power, lifting capacities and speed combine to deliver performance you can rely on day after day.
DX160W-7
| DX160W | Specifications |
| Operating weight | 15,846 - 16,762 kg |
| Engine | Doosan DL06KB |
| Engine power | 102 kW / 137 HP at 2000 RPM |
| Main pumps max flow | 2 x 170 l/min |
| Number of cylinders | 6 |
| Travel speed (High / Eco / Low / Creep) | 37 / 32 / 10 / 3.5 km/h |
| Maximum traction force | 8300 kgf |
| Buckets | 0.24 - 0.76 m³ |
| Sound level (internal / external) | 69 dB(A) / 102 dB(A) |
| Overall width | 2500 mm |
| Tail swing radius | 2200 mm |
| Overall height (Mono / Arti boom) | 3430 mm / 3950 mm |
| Overall length (Mono / Arti boom) | 7185 mm / 8005 mm |
| Bucket digging force | 114.9 kN |
| Arm digging force (Std Front) | 79.6 kN |
| Max. digging reach (Mono / Arti boom) | 7765 mm / 8670 mm |
| Max. digging depth (Mono / Arti boom) | 4650 mm / 5455 mm |
| Max. digging height (Mono / Arti boom) | 8340 mm / 9565 mm |
