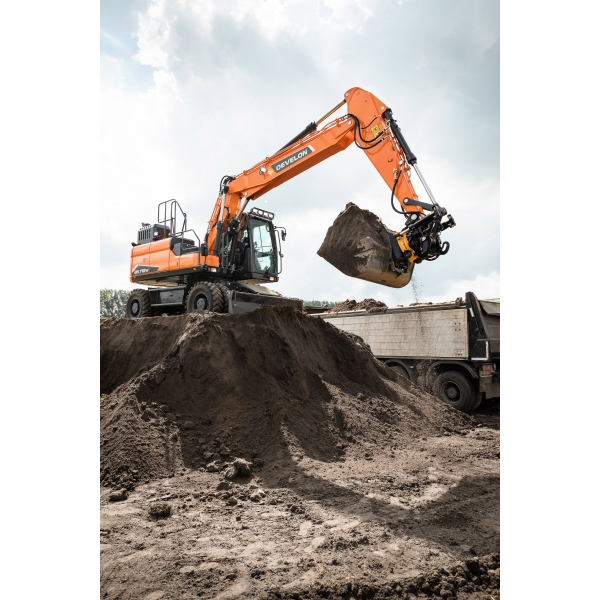

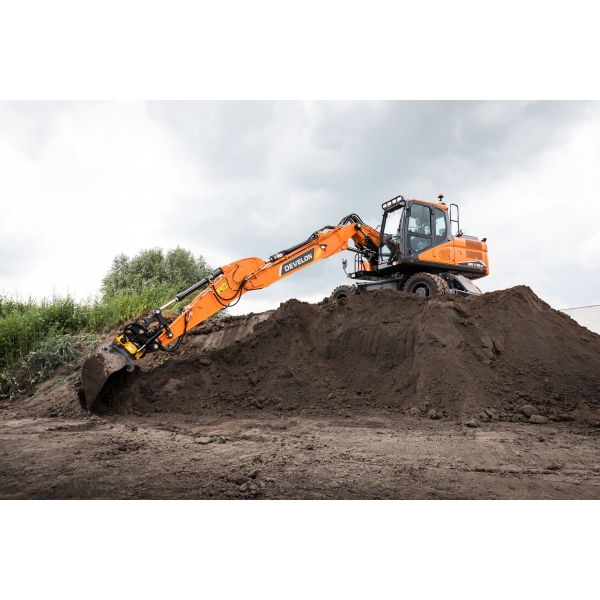

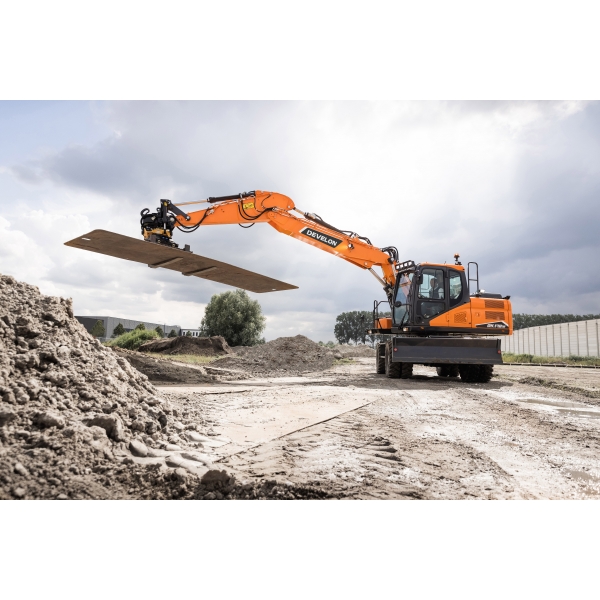

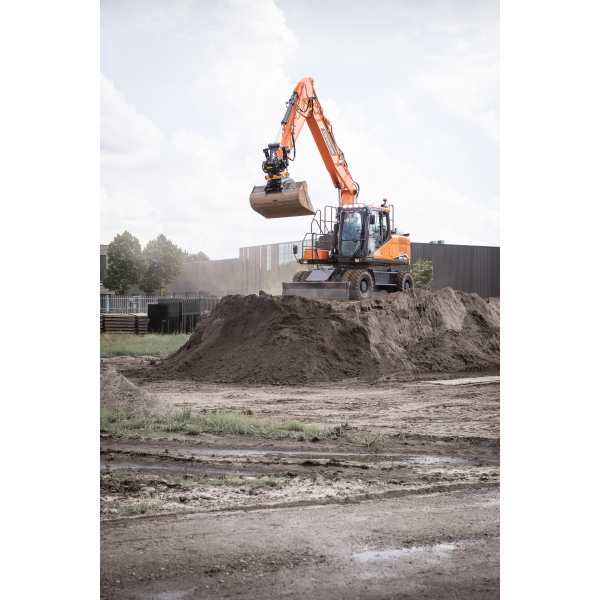

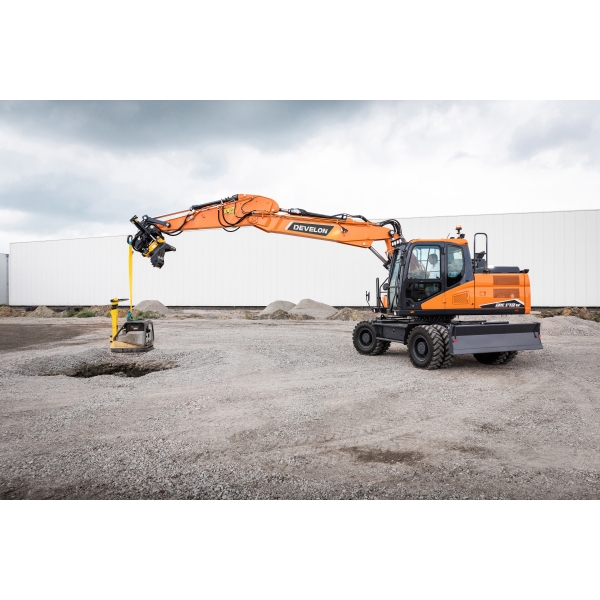

The new, Stage IV compliant, DX170W-5 Wheeled Excavator incorporates the previous “-3” improvements and adds significant new features.
Further refinements to the already outstanding cab: exclusive jog shuttle switch, fully automatic climate control system, more storage compartments for paperwork and other items, and much more.
DX170W-7
| DX170W-5 | Specifications |
| Operating weight | 16,800 - 18,300 kg |
| Engine | Doosan DL06P |
| Engine power | 113.3 kW / 151.9 HP at 2000 RPM |
| Main pumps max flow | 2 x 170 l/min |
| Number of cylinders | 6 |
| Travel speed (High / Low / Creep) | 37 / 10 / 3 km/h |
| Maximum traction force | 170 – 10 ton |
| Buckets | 0.32 - 0.90 m³ |
| Sound level (internal / external) | 70 dB(A) / 102 dB(A) |
| Overall width | 2500 mm |
| Tail swing radius | 2795 mm |
| Overall height (Mono / Arti boom) | 3,098 mm / 3,136 mm |
| Overall length (Mono / Arti boom) | 8,219 mm / 8,320 mm |
| Bucket digging force | 11.6/12.3 t |
| Arm digging force (Std Front) | 8.2/8.6 t |
| Max. digging reach (Mono / Arti boom) | 8,875 mm / 9,090 mm |
| Max. digging depth (Mono / Arti boom) | 5,315 mm / 5,745 mm |
| Max. digging height (Mono / Arti boom) | 9,140 mm / 10,045 mm |
